Remove/Install Panoramic Sunroof Drive Guide Rail - AR77.21-P-0430GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Completely open panoramic sliding sunroof | ||
| 2 | Completely open roller sun blind | ||
| 3 | Remove headliner | AR68.30-P-4300GQC | |
| 4 | Remove wind deflector | AR77.21-P-0100GQC | |
| 5 | Remove panoramic sliding roof motor | AR77.21-P-6995GQC | |
| 6 | Remove panoramic roof roller sun blind drive cable | AR77.21-P-0230GQC | |

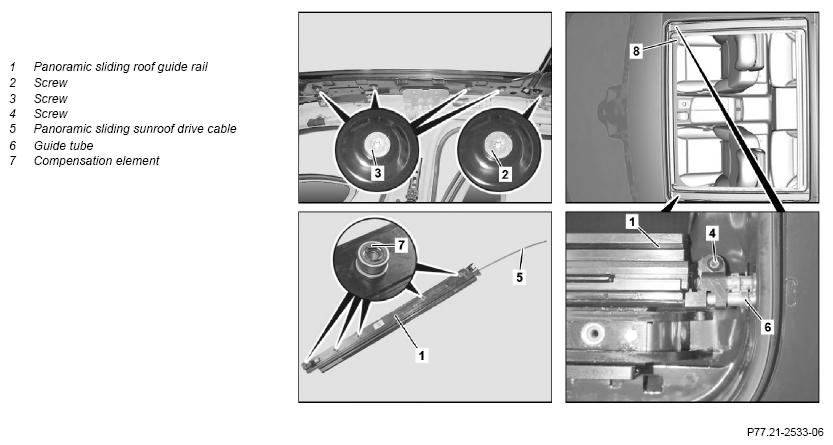

| 7 | Unscrew bolt (4) from panoramic sliding roof guide rail (1) | ||
| 8 | Carefully press windowbag to side | Otherwise the windowbag can be damaged. |
|

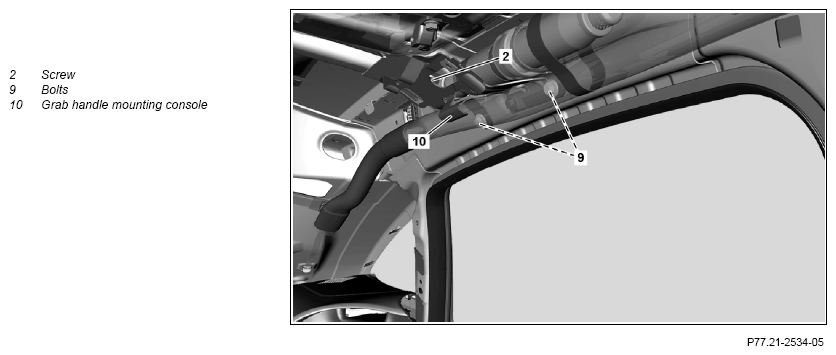

| 9 | Unscrew bolts (9) from grab handle mounting console (10) until bolt (2) of panoramic sliding roof guide rail (1) is accessible | ||
| 10 | Unscrew bolts (2, 3) from panoramic sliding roof guide rail (1) | ||
| 11 | Remove panoramic sliding roof guide rail (1) from panoramic sliding roof frame and pull panoramic sliding roof drive cable (5) out of guide tube (6) | ||
| Install | |||
| 12 | Manually turn back compensation elements (7) | Otherwise the panoramic sliding roof guide rail (1) can be damaged when tightening. If compensating elements (7) are sluggish ↓ Replace compensating elements (7). |
|
| 13 | Install panoramic sliding roof drive cable (5) in guide tube (6) and insert panoramic sliding roof guide rail (1) into panoramic sliding roof frame | Otherwise the guide tube (6) can be damaged. |
|
| 14 | Lightly tighten bolts (3) by hand | ||
| 15 | Tighten bolts (2, 4) on panoramic sliding roof guide rail (1) | ||
| 16 | Tighten bolts (9) on grab handle mounting console (10) | *BA91.60-P-1006-01H | |
| 17 | Carefully push mechanical sliding roof components on panoramic sliding roof guide rail (1) toward front to stop by hand | ||
| 18 | Install panoramic sliding roof motor | AR77.21-P-6995GQC | |
| 19 | Connect ground cable to battery | AR54.10-P-0003GZ | |
| 20 | Connect overhead control panel control unit to vehicle wiring harness and completely adjust mechanical sliding roof components together with panoramic sliding roof switch toward rear to limit stop | Otherwise the electrical wiring harness can be damaged. |
|
| 21 | Install panoramic roof roller sun blind drive cable | AR77.21-P-0230GQC | |
| 22 | Reinstall wind deflector | AR77.21-P-0100GQC | |
| 23 | Completely close panoramic sliding roof | ||
| 24 | Push panoramic sliding roof on transition to rear roof paneling downward and tighten bolts (3) | After tightening, the rear edge of the closed panoramic sliding roof must be flush or max. 2 mm higher than the top edge of the roof. |
|
| 25 | Adjust panoramic sliding roof | AR77.21-P-0501GQC | |
| 26 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 27 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 28 | Disconnect overhead control pane control unit from vehicle-side wiring harness | ||
| 29 | Install headliner | AR68.30-P-4300GQC | |
| Initial startup | |||
| 30 |
Normalize panoramic sliding roof and teach in automatic reversing function | AD00.00-P-2000-04A | |
| 31 | Perform function test |
AIRBAG
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA91.60-P-1006-01H | Bolt/nut, windowbag to body | Nm | 8 |
