Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove panoramic sliding roof roller sun blind | AR77.21-P-0215GQC | |
| 2 | Remove panoramic sliding roof roller sun blind motor | AR77.21-P-0490GQC | |

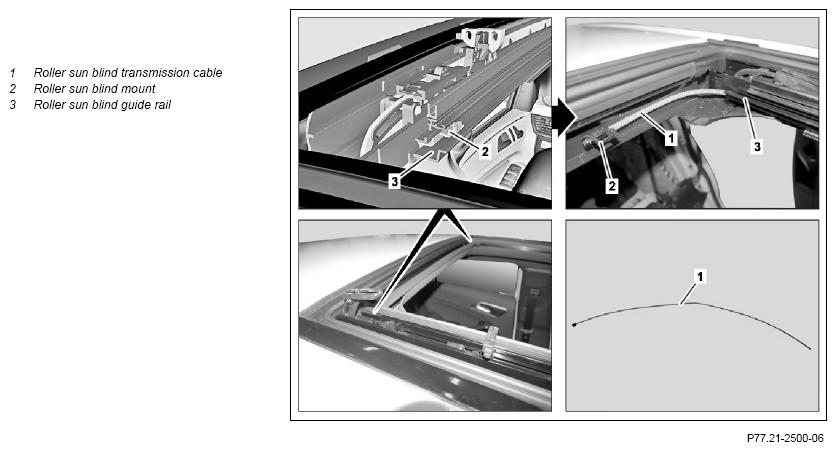

| 3 | Push roller sun blind mount (2) on left and right roller sun blind drive cable (1) toward rear out of roller sun blind guide rail (3) | Fig 1 | |
| 4 | Pull roller sun blind drive cable (1) toward rear out of roller sun blind guide rail (3) | ||
| 5 | Install in the reverse order |
