Remove/Install Panoramic Sliding Roof Motor - AR77.21-P-6995GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic system and store basic data for panoramic sliding roof control module | Only when replacing panoramic sliding roof control motor (1). | AD00.00-P-2000-04A |

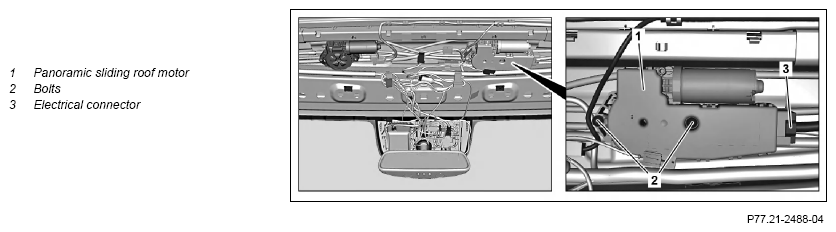

| 2 | Detach headliner in front area until panoramic sliding roof control motor (1) is accessible | AR68.30-P-4300GQC | |
| 3 | Disconnect electrical connector (3) | ||
| 4 | Remove screws (2) | ||
| 5 | Remove panoramic sliding roof control motor (1) | ||
| 6 | Install in the reverse order | ||
| Initial startup | |||
| 7 | Perform SCN coding for panoramic sliding roof control unit | Only when replacing panoramic sliding roof control motor (1). | AR54.21-P-0015X |
| 8 |
Transfer previously stored basic data to panoramic sliding roof control module | Only when replacing panoramic sliding roof control motor (1). | AD00.00-P-2000-04A |
| 9 | Perform start-up for panoramic sliding roof control module | Only when replacing panoramic sliding roof control motor (1). |
