Remove/Install Rear Axle Hub Reduction Gear - AR35.25-P-0645GWX

Model 463.234

up to model year 2019 with code ZQ0 (G 500 4x4 ² )

Model 463.255

up to model year 2019

with code MUK2 (USA or Canada vehicle model designation)

with code ZQ0 (G 500 4x4 ² )

Model 463.274

up to model year 2019

with code LQ0 (G650 Landaulet)

Shown on left side of vehicle

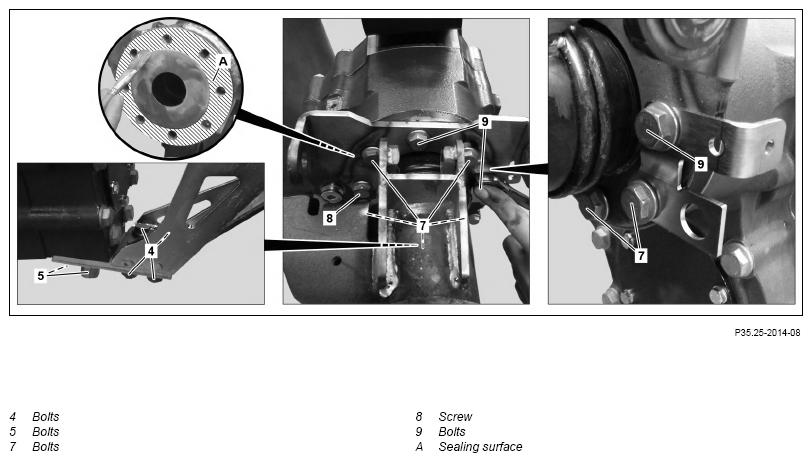

Fig 1: Rear Axle Hub Reduction Gear Components Location - Model 463.255 Up To Model Year 2019 With Codes ZQ0 & MUK2 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes for repair work on hub reduction gear	Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x4² )	AH33.25-P-0650-01GWX
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove wheel and tire assembly or rear axle wheel and tire assemblies.		AR40.10-P-1100GWX
3	Mark position of left (L6/3) or right (L6/4) rear axle RPM sensor at hub reduction gear using suitable means.	The distance to the pulse ring is not adjustable.
4	Remove left (L6/3) or right (L6/4) rear axle RPM sensor.
5	Seal mounting hole of left (L6/3) or right (L6/4) rear axle RPM sensor using suitable stop plugs	Record plug	Fig 3
6	Remove bleed line from hub reduction gear and seal openings using suitable stop plugs.	Record plug	Fig 3
7	Remove rear axle brake disk.	Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x4² )	AR42.10-P-0240GWX
		Tighten left (L6/3) or right (L6/4) rear axle RPM sensor with connected wiring harness and lines of brake caliper to the vehicle free of tension. This will prevent damage to the lines.
8	Drain oil of hub reduction gear into a suitable container.	If the hub reduction gear is disassembled.
			AP00.50-P-0500A
9	Support hub reduction gear.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		The screws (4, 5) must continue to be accessible. Support hub reduction gear so that its axle-side threaded connection remains accessible.
		The hub reduction gear is pulled out in this position from the axle tube.
10	Remove left or right rear suspension strut from rear axle.	Do not loosen screws of suspension strut from frame.	AR32.25-P-1016GWX
11	Unscrew nuts of screws (4) and remove screws (4).
12	Remove screws (5) and remove carrier plate of axle support.
13	Remove axle-side screws (7, 8, 9) of hub reduction gear.	The screws (7, 8, 9) have differing lengths.
14	Secure hub reduction gear with suitable means against falling down, and guide out and remove in an axial direction with drive shaft out of axle.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Aid of helper required.
		Depending on the level of the axle, oil may escape from the rear axle. Collect escaping oil with suitable means.
	Clean
15	Clean removed parts using suitable means.	The marking of the position of the left (L6/3) or right (L6/4) rear axle RPM sensor must be retained.
	Check
16	Check removed parts for wear and damage.	If problems are found,
		↓
		replace affected parts.
	Install
17	Clean contact and sealing surfaces as well as sealing surface (A) of axle flange.		AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
18	Distribute sealing compound evenly on sealing surface (A) of axle flange.	Surface sealant, green	*BR00.45-Z-1129-01A
19	Install hub reduction gear with drive shaft and secure against falling down.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		The lengths of the drive shafts are different on the left and right sides.
		Ensure that the hub reduction gear and the drive shaft are correctly aligned.
		The teeth of drive shaft must engage in their counterpart in the axle.
		Pay attention to wiring harness of left (L6/3) or right (L6/4) rear axle RPM sensor.
		Two helpers required.
20	Position bracket of brake lines and tighten axle-side screws (7, 8, 9) of hub reduction gear lightly by hand.	Left-hand side of vehicle: Length of screws (9): 40 mm. Length of screws (7, 8): 35 mm. Right-hand side of vehicle: Length of screws (8, 9): 40 mm. Length of screws (7): 35 mm.
21	Fasten axle-side screws (7, 8, 9) of hub reduction gear.	Fasten screws (7, 8, 9) in a crosswise sequence. Otherwise the hub reduction gear is under stress or tilted.
		Bolt, portal drive to rear axle	*BA35.30-P-1008-02A
		box wrench	Fig 2
22	Position carrier plate of axle support, attach screws (4) and tighten nuts of screws (4) lightly by hand.
23	Lightly tighten screws (5) by hand.	Perform operation steps 23 to 25 in quick succession. Loctite 243	*BR00.45-Z-1066-01A
24	Tighten bolts (4).	Screw, axle support to rear axle housing/carrier plate	*BA35.30-P-1009-02A
25	Tighten screw screw/bolts (5).	Bolt, carrier plate for axle support to portal drive	*BA35.30-P-1010-02A
26	Remove major assembly support.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
27	Attach bleed line.	Use new sealing rings.
		Banjo bolt, ventilation to portal drive	*BA35.30-P-1012-02A
28	Lightly grease mounting hole of screw and left (L6/3) or right (L6/4) rear axle RPM sensor.	ABS sensor grease	*BR00.45-Z-1019-06A
29	Install left (L6/3) or right (L6/4) rear axle RPM sensor at previously marked position.	Self-locking bolt, RPM sensor to rear axle	*BA42.30-P-1001-02J
30	Check oil level at rear axle and correct if necessary.
			AP35.10-P-3510G
31	Pour oil into hub reduction gear.	If the hub reduction gear was disassembled.
			AP00.50-P-0500A
32	Install left or right rear axle brake disk.	Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x4² ) Route lines of left (L6/3) or right (L6/4) rear axle RPM sensor along the original position and fasten.	AR42.10-P-0240GWX
	Concluding tasks
33	Repair damaged or faulty preservation with underbody protection.	Wax for vehicle underside (1l container)	*BR00.45-Z-1002-05A

REAR AXLE DRIVE

Number	Designation		Model 463 up to model year 2019
BA35.30-P-1008-02A	Bolt, portal drive to rear axle	Nm	75

REAR AXLE DRIVE

Number	Designation		Model 463 up to model year 2019
BA35.30-P-1009-02A	Screw, axle support to rear axle housing/carrier plate	Nm	75

REAR AXLE DRIVE

Number	Designation		Model 463 up to model year 2019
BA35.30-P-1010-02A	Bolt, carrier plate for axle support to portal drive	Nm	92

REAR AXLE DRIVE

Number	Designation		Model 463 up to model year 2019
BA35.30-P-1012-02A	Banjo bolt, ventilation to portal drive	Nm	8

REAR AXLE RPM SENSOR

Number	Designation		Model 461 Model 463 up to model year 2019
BA42.30-P-1001-02J	Self-locking bolt, RPM sensor to rear axle	Nm	8

Fig 2: Identifying Box Wrench (001 589 01 16 03)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-05A	Wax for vehicle underside (1l container)	A 000 986 42 70 10
BR00.45-Z-1019-06A	ABS sensor grease	A 000 989 62 51 10
BR00.45-Z-1038-04A	Loctite 7200	Henkel AG & Co. KGaA
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1066-01A	Loctite 243	A 613 989 09 71 09
BR00.45-Z-1129-01A	Surface sealant, green	Adolf Wurth GmbH & Co. KG
