Perform Oil Change On Front And Rear Axle Portals - AP00.50-P-0500A

Model 463.234

with code ZQ0 (G 500 4x42)

Model 463.255

with code MUK2 (USA or Canada vehicle Model designation)

Model 463.274

with code LQ0 (G650 Landaulet)

Courtesy of MERCEDES-BENZ USA

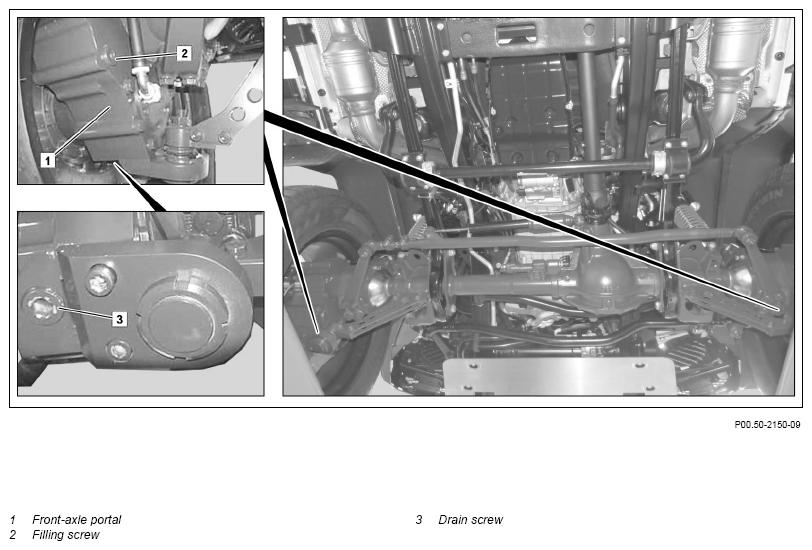

Shown here, portal on front axle

Courtesy of MERCEDES-BENZ USA

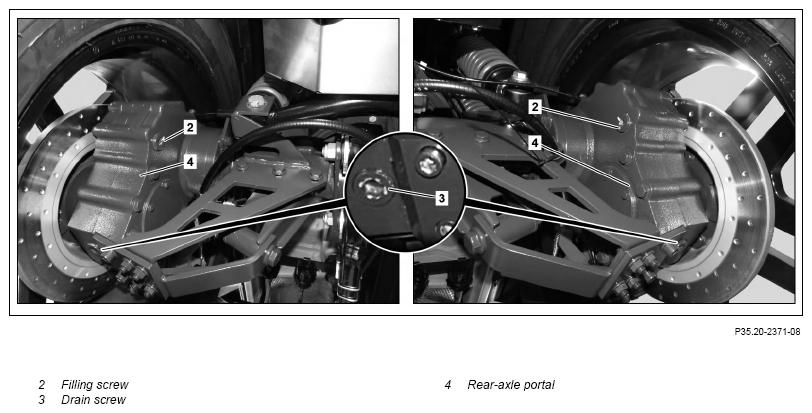

Shown here portal on rear axle

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death or serious injury  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Preparatory activity
1	Lift vehicle on vehicle lift
		Model 463.234 up to Model year 2019 with code ZQ0 (G 500 4x42) Model 463.255 up to Model year 2019 with code MUK2 (USA or Canada vehicle Model designation) Model 463.274 up to Model year 2019 with code LQ0 (G650 Landaulet) Vehicle must be horizontal. Otherwise the portals will not be filled correctly and an incorrect oil filling capacity can lead to leakage and damage.	AR00.60-P-1000G
	Clean
2	Clean area surrounding all drain plugs (3) and filling screws (2)
	Remove
3	Remove filling screws (2) from front-axle portals (1) and dispose of seals
4	Remove filling screws (2) from rear-axle portals (4) and dispose of seals
	Drain off
5	Remove drain plugs (3) from front-axle portals (1), drain oil and dispose of seals
6	Remove drain plugs (3) from rear-axle portals (4), drain oil and dispose of seals
	Clean
7	Clean filling screws (2), drain screws (3) and threaded holes in front axle portals (1)
8	Clean filling screws (2), drain screws (3) and threaded holes in rear axle portals (4)
	Install
9	Tighten drain screws (3) with new seals into front-axle portals (1)	Seals must be replaced. Otherwise, this may lead to leakage and consequential damage. Drain screw at portal drive	*BA33.30-P-1005-01A
10	Tighten drain screws (3) with new seals into rear-axle portals (4)	Seals must be replaced. Otherwise, this may lead to leakage and consequential damage. Drain screw at portal drive	*BA35.30-P-1007-02A
	Pour in
11	Add specified oil filling capacity into front axle portals (1)	The front axle portals (1) must not be filled up to the lower edge of the filling screw opening. The filling capacity must be observed. Damage can otherwise occur. Portal drive hypoid gear oil	*BF33.30-P-1002-01A
12	Add specified oil filling capacity into rear axle portals (4)	The rear axle portals (4) must not be filled up to the lower edge of the filling screw opening. The filling capacity must be observed. Damage can otherwise occur. Portal drive hypoid gear oil	*BF35.10-P-1002-01A
	Install
13	Tighten filling screws (2) with new seals into front-axle portals (1)	Seals must be replaced. Otherwise, this may lead to leakage and consequential damage. Oil filler screw at portal drive	*BA33.30-P-1004-01A
14	Tighten filling screws (2) with new seals into rear-axle portals (4)	Seals must be replaced. Otherwise, this may lead to leakage and consequential damage. Oil filler screw at portal drive	*BA35.30-P-1006-02A
	Finishing activity
15	Lower vehicle with lifting platform
		Model 463.234 up to Model year 2019 with code ZQ0 (G 500 4x42) Model 463.255 up to Model year 2019 with code MUK2 (USA or Canada vehicle Model designation) Model 463.274 up to Model year 2019 with code LQ0 (G650 Landaulet)	AR00.60-P-1000G
