Overview of system components for windshield wiper system - GF82.30-P-9996FL
MODEL 212

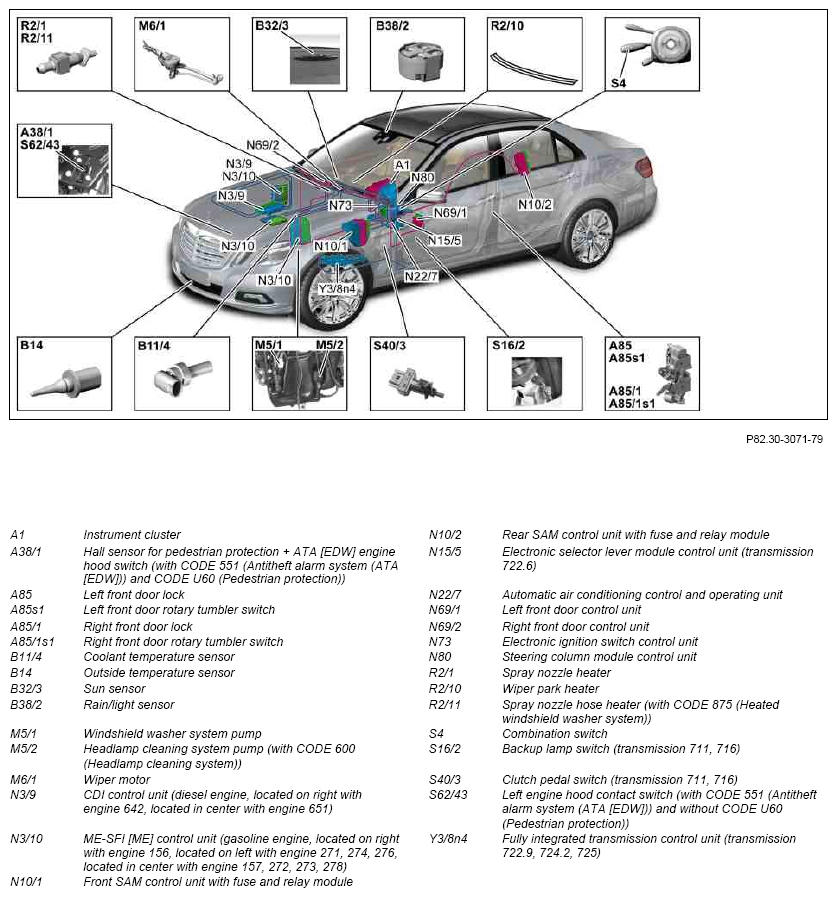

Model 212.0

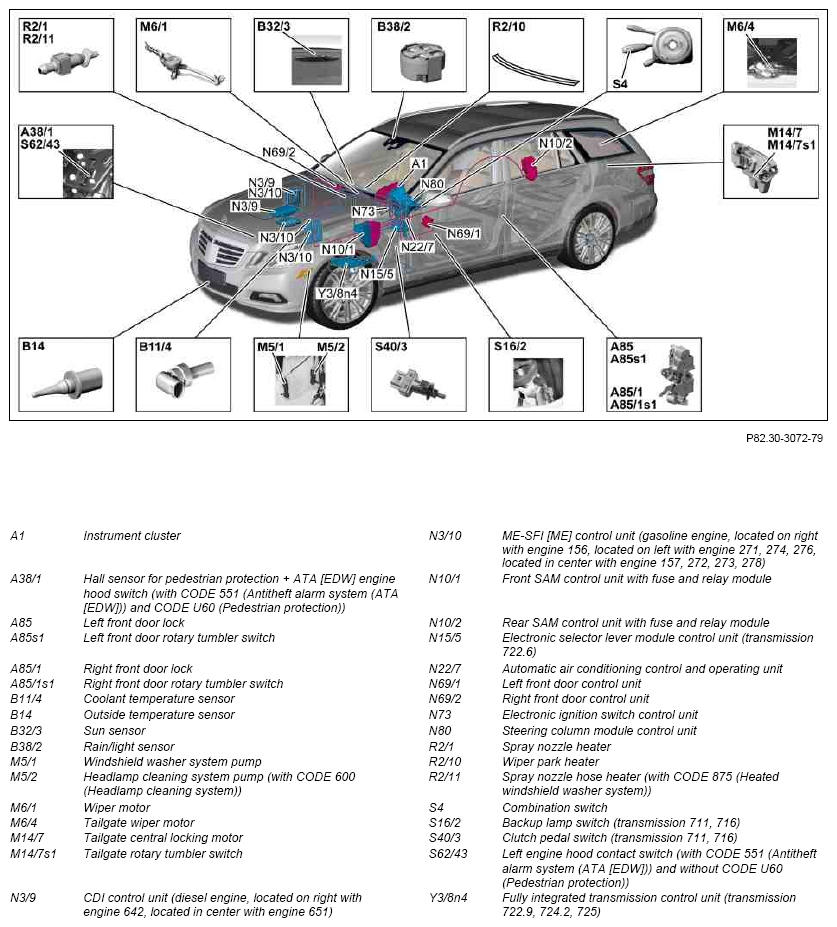

Model 212.2
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 | GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 | GF07.16-P-6000OLH | ||
| MODEL 212.098/298 with ENGINE 651.924 up to 8/31/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212.098/298 with ENGINE 651.9 as of 9/1/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLJ | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 Delphi N3/9 | GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 | GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 271.8 N3/10 | GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) N3/10 | GF07.61-P-6000MI | ||
| MODEL 212.0/2 with ENGINE 272.983 N3/10 | GF07.61-P-6000MIE | ||
| MODEL 212.0/2 with ENGINE 273.9 N3/10 | GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 | GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 | GF07.61-P-6000MMO | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for electronic selector lever module control unit | MODEL 212 (except 212.041) with TRANSMISSION 722.6 up to model year 2012 MODEL 212.041 with TRANSMISSION 722.6 N15/5 |
GF27.60-P-5163ACL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA | |
| MODEL 212 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) Y38n4 | GF27.60-P-5165AHL | |
| MODEL 212 with TRANSMISSION 722.930 up to model year 2012 MODEL 212 with TRANSMISSION 722.931 as of model year 2012 Y38n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 Y38n4 | GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 Y38n4 | GF27.60-P-5165ANA | ||
| Table of contents for function description of windshield wiper system | GF82.30-P-0997FL |
