Component description for electronic selector lever module control unit - GF27.60-P-5163ACL

TRANSMISSION 722.6 in MODEL 207.3 up to model year 2012/YoM 11

TRANSMISSION 722.6 in MODEL 207.4 up to model year 2012/YoM 11

TRANSMISSION 722.6 in MODEL 212.0 (except 212.041) up to model year 2012/YoM 11

TRANSMISSION 722.6 in MODEL 212.041

TRANSMISSION 722.6 in MODEL 212.2 up to model year 2012/YoM 11

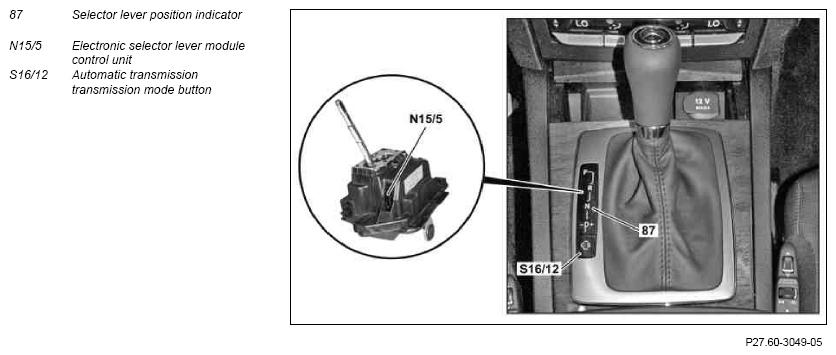

Location

The electronic selector lever module control unit is located in the center console between the front seats.

Task

General

The electronic selector lever module control unit records the positions of the selector lever (non-contact) using inductive sensors.

The selector lever positions and touch shifts performed are detected in a contactless manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the selector lever position is changed.

Controller Area Network (data bus/CAN bus) (CAN)

The electronic selector lever module control unit is connected via the drive train CAN (CAN C) to the vehicle's CAN network, and exchanges data with other control units.

Input and output signals

The following input signals are evaluated by the electronic selector lever module control unit and the corresponding output signals issued:

• Direct input signals
• Direct output signals
• CAN input signals
• CAN output signals

Direct input signals

• Circuit 30g
• Circuit 31
• Selector lever position
• Status, automatic-transmission transmission mode button
• Touch button +/-

Direct output signals

• Locking solenoid for selector lever positions R and P (Y66/2)
• Function illumination for selector lever position "P", "R", "N" and "D" (with code (494) USA version)
• Switch and controls illumination "circuit 58d" for gear indicator

CAN input signals

Instrument cluster (A1)

• Terminal 58 dimmed

Electronic Stability Program control unit (N30/4) (except code (233) DISTRONIC PLUS) or Electronic Stability Program Premium control unit (N30/7) (with code (233) DISTRONIC PLUS)

• Wheel speed signals
• Brake torque

Electronic ignition lock control unit (N73)

• Circuit -50 signal
• Circuit -15 signal
• Stop lamp actuation feedback
• Drive authorization stage 3 (DAS 3)

Front SAM control unit with fuse and relay module (N10/1)

• Diagnosis request

CAN output signals

Instrument cluster

• Selector lever position for gear display (A1p12)
• Mode selection for transmission mode display (A1p16)

CDI control unit (N3/9) (on diesel engines) or ME-SFI [ME] control unit (N3/10) (on gasoline engines)

• Selector lever position

Electronic ignition switch control unit

• Selector lever position for reverse lamp actuation
• Enable request from DAS 3

Electronic transmission-control control unit (N15/3)

• Selector lever position
• Transmission mode selection

Front SAM control unit with fuse and relay module

• Diagnostic data

Functions

Basic functions

• Read in signals of transmission mode button for automatic transmission
• Transmission of selector lever positions "P, R, N, D" and touch shifts "1, 2, 3, 4, "

Shift-lock, function

• Park pawl
• Locking ignition switch
• Locking of selector lever position "P"
• Shift-Lock-Override (manual unlocking of selector lever position "P")

Flash programming

The electronic selector lever module control unit is flashable, i.e. the complete software in the electronic selector lever module control unit can be changed (replaced). The software required for control unit programming is stored on the Star Diagnosis Assistance System (DAS) update DVD.

	Wiring diagram for electronic selector lever module control unit	Model 207	PE27.19-P-2102-97EAA
		Model 212	PE27.19-P-2102-97DAA
