Component description for right front door control unit - GF72.29-P-6009FL

MODEL 212

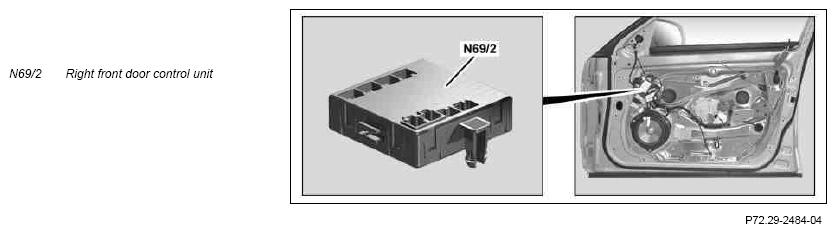

Location

The right front door control unit is located on the door module behind the door lining.

Task

The right front door control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The input factors are read in via the following connections:

• Direct line
• Right front door LIN (LIN B6)
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via direct lines:

• Right front door rotary tumbler switch (A85/1s1)
• Hall sensors for left front power window motor (M10/4)
• Vertical inclination adjustment potentiometer (M21/2r2) (with code (275) Electrically adjustable front seats memory package)
• Potentiometer for horizontal inclination adjustment (M212r3) (with code (275) Electrically adjustable front seats memory package)
• Passenger-side power window switch (S212)
• Right front door central locking interior switch (S856):
  • Open central locking switch (S856s1)
  • Close central locking switch (S856s2)

Right front door LIN

The signals for the following components are read in by the right front door LIN:

• Right front seat adjustment switch group (S23) (with code (275) Memory package for electrically adjustable front seats):
  • Right front head restraint adjustment switch (S23s1)
  • Right front seat inclination adjustment switch (S23s2)
  • Right front seat fore/aft adjustment switch (S23s3)
  • Right front seat height adjustment switch (S23s4)
  • Right front backrest adjustment switch (S23s5)
  • Right front memory function switch (S23s6)
  • Right front memory 1 switch (S23s7)
  • Right front memory 2 switch (S23s8)
  • Right front memory 3 switch (S23s9)

The right front door control unit supplies the connected control elements with c. 58d.

Interior CAN

The signals are read in via the interior CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

Components are actuated with the following connection:

• Direct line

Direct line

The following components are actuated via a direct line:

• Right front door central locking motor (A85/1m1)
• Right front door additional door lock actuator motor (A85/1m4) (with code (885) Increased theft protection)
• Right front door exit and warning lamp (E17/4)
• Right front door handle illumination (E1712)
• Right front door ambiance illumination (E17/44) (with code (876) Interior lights package)
• Right outside mirror turn signal lamp (E6/6)
• Right front door power window motor (M10/4)
• Right outside mirror (M212):
  • Readiness/warning indicator for right Blind Spot Assist (M212e2) (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
  • Vertical inclination adjustment actuator motor (M21/2m1)
• Horizontal inclination adjustment actuator motor (M21/2m2)
• Outside mirror fold-in/out electric motor (M212m3) (with code (249) Automatically dimming interior rearview mirror and outside mirror, including folding outside mirror, and without code (494) USA version)
• Mirror heater (M21/2r1)

Wiring diagram for right front door control unit (DCU)

PE72.29-P-2102-97DAA
