Overview of system components, telematics - GF82.85-P-9999FQ
MODEL 218 up to model year 2013

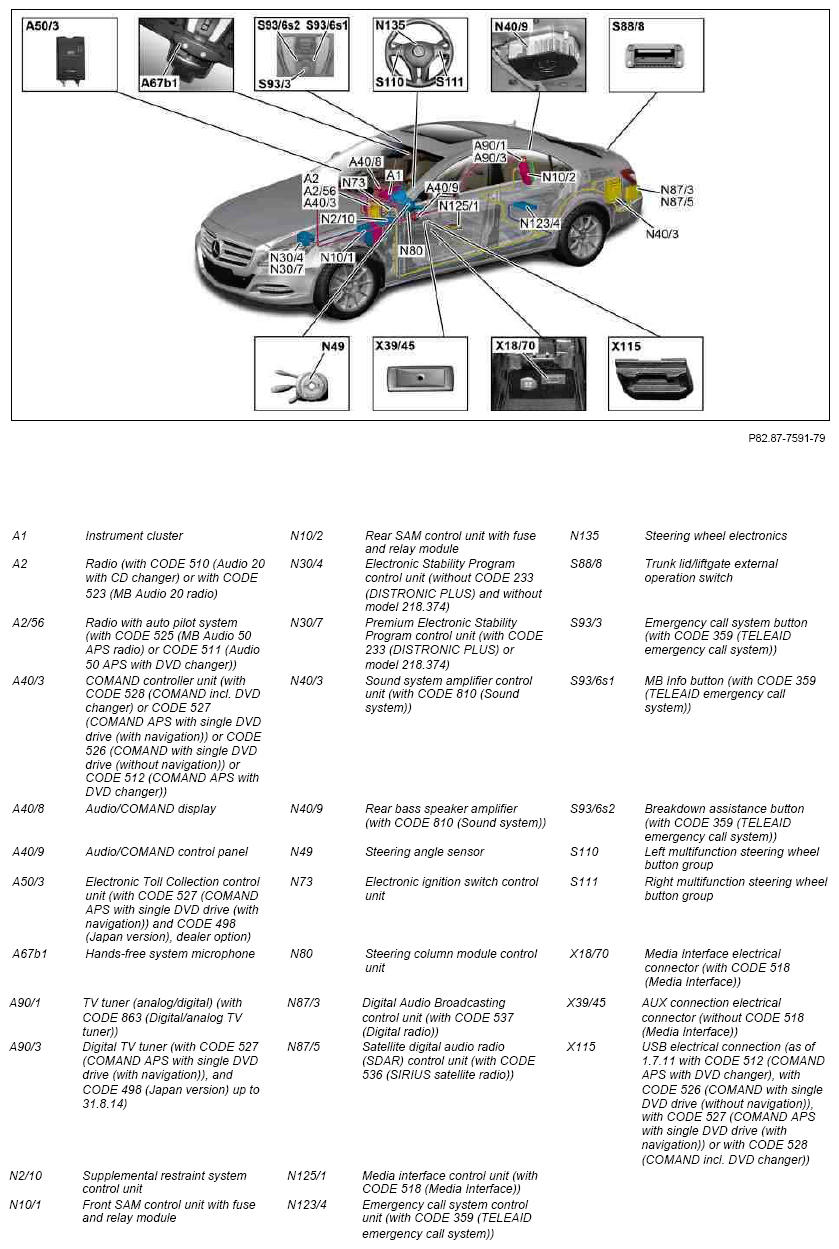

Shown without speaker system and telematic antenna system
Shown on telematics antenna system on model 218.3

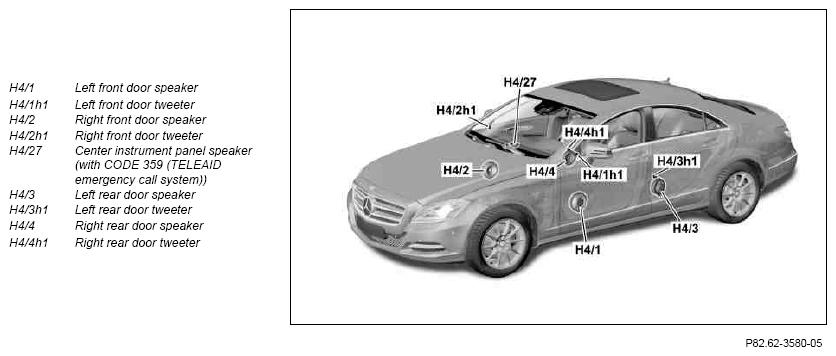

Speaker system without CODE 810 (Sound System) shown

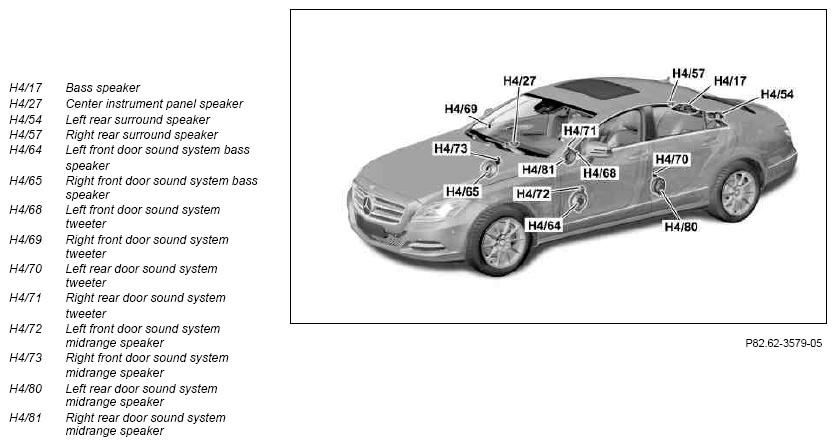

Speaker system with CODE 810 (Sound system) shown
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FQ | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501FQ | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ | |
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ | |
| Component description for Audio/COMAND display | MODEL 218.3 up to model year 2013 without CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FQ | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ | |
| Component description for overhead control panel control unit | MODEL 218 up to model year 2013 with CODE 414 (Power glass tilting/sliding roof) S93/3, S93/6s1, S93/6s2, N70 |
GF82.20-P-5216FQ | |
| Component description for TV tuner (analog/digital) | MODEL 218.3 up to model year 2013 with CODE 863 (Digital/analog TV tuner) A90/1 |
GF82.60-P-3106FQ | |
| Digital TV tuner, component description | MODEL 218.3 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A90/3 |
GF82.60-P-3118FQJ | |
| Component description for the radio | MODEL 218 up to model year 2013 with CODE 510 (Audio 20 with CD changer) MODEL 218 up to model year 2013 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FQ | |
| Component description for media interface control unit | MODEL 218.3 up to model year 2013 with CODE 518 (Media interface) N125/1 |
GF82.60-P-5000FQ | |
| Component description for radio with auto pilot system | MODEL 218.3 up to model year 2013 with CODE 511 (Audio 50 APS with DVD changer) MODEL 218.3 up to model year 2013 with CODE 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112FQ | |
| Component description for Digital Audio Broadcasting control unit | MODEL 218.3 up to model year 2013 with CODE 537 (Digital radio) N87/3 |
GF82.62-P-5000FQ | |
| Component description for sound system amplifier control unit | MODEL 218 up to model year 2013 with CODE 810 (Sound system) without CODE 811 (Advanced sound system) N40/3 |
GF82.62-P-5010FQ | |
| Satellite digital audio radio (SDAR) control unit, component description | MODEL 218 up to model year 2013 with CODE 536 (SIRIUS satellite radio) N87/5 |
GF82.85-P-3121FQ | |
| Component description for COMAND controller unit | MODEL 218 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 218 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 218 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FQ | |
| Component description for emergency call system control unit | MODEL 218.3 up to model year 2013 with CODE 359 (TELE AID emergency call system) N123/4 |
GF82.95-P-3212FQU | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ | |
| Table of contents for function description, telematics | MODEL 218 up to model year 2013 |
GF82.85-P-0993FQ |
