Remove/install dashboard - AR68.10-P-1000LW
MODEL 205
Shown with TRANSMISSION 722
Shown with TRANSMISSION 722
Model 205 with transmission 722, 724, 725
Model 205 with transmission 716
Shown with TRANSMISSION 722
Shown with TRANSMISSION 722
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Remove/install | |||
| 1 | Move driver and passenger front seat toward rear to end position | ||
| 2 | Position steering wheel rearwards and at the bottom | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003LW | |
| 4 | Remove cover below left of instrument panel | AR68.10-P-1500LW | |
| 5 | Remove paneling from left and right A-pillars | AR68.30-P-4050LW | |
| 6 | Remove left air vent | AR83.10-P-4501LW | |
| 7 | Remove steering column tube module | AR54.25-P-2802LW | |
| 8 | Remove instrument cluster | AR54.30-P-6015LW | |
| 9 | Remove Audio/COMAND display | AR82.60-P-7722LW | |
| 10 | Remove speaker | MODEL 205 with CODE 348 (Emergency call/assistant system) MODEL 205 with CODE 810 (Sound system) |
|
| AR82.62-P-7833LW | |||
| 11 | Remove center console | MODEL 205.0/2 with TRANSMISSION 716 | AR68.20-P-2000LWA |
| MODEL 205 with TRANSMISSION 722, 724, 725 | AR68.20-P-2000LW | ||
| 12 | Remove heat unit | MODEL 205 with CODE 520 (Audio 20 USB) MODEL 205 with CODE 522 (Audio 20 radio) MODEL 205 with CODE 531 (COMAND APS) |
|
| AR82.85-P-1100LW | |||
| 13 | Remove right air vent | AR83.10-P-4502LW | |
| 14 | Remove glove compartment | AR68.10-P-1400LW | |

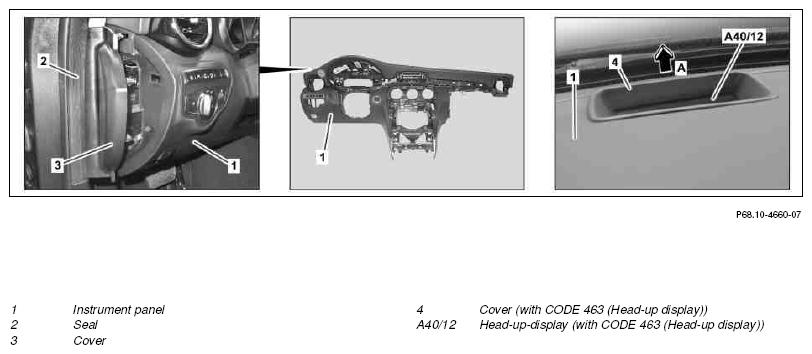

| 15 | Detach seal (2) in area of cover (3) | ||
| 16 | Remove cover (3) from instrument panel (1) | Fig 7 | |
| 17 | Unclip cover (4) from head-up display (A40/12) and remove (arrow A) | MODEL 205 with CODE 463 (Head-up display) |
|
| Fig 8 | |||
| 18 | Cover head-up display (A40/12) | MODEL 205 with CODE 463 (Head-up display) Otherwise head-up display (A40/12) can be scratched. |
|

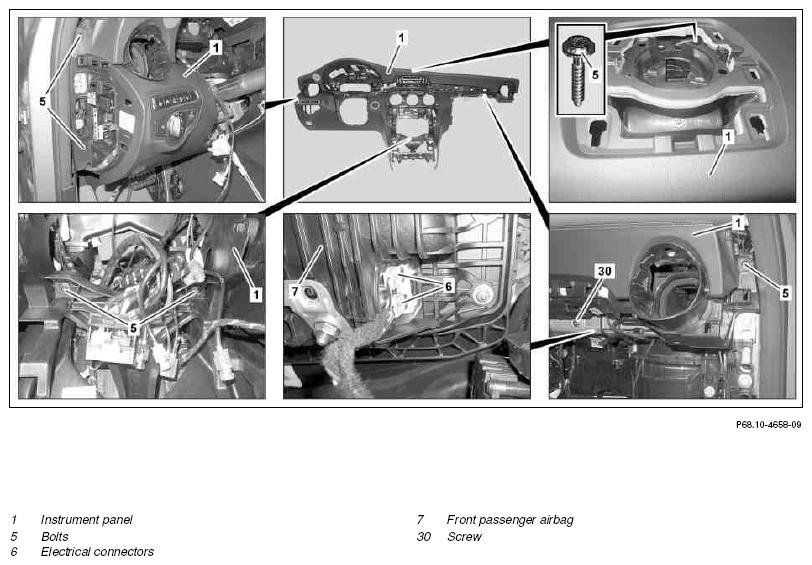

| 19 | Remove bolts (5) from instrument panel (1) | ||
| 20 | Unscrew bolt (30) from passenger airbag (7) | MODEL 205.0/1/2 |
*BA91.60-P-1002-01O |

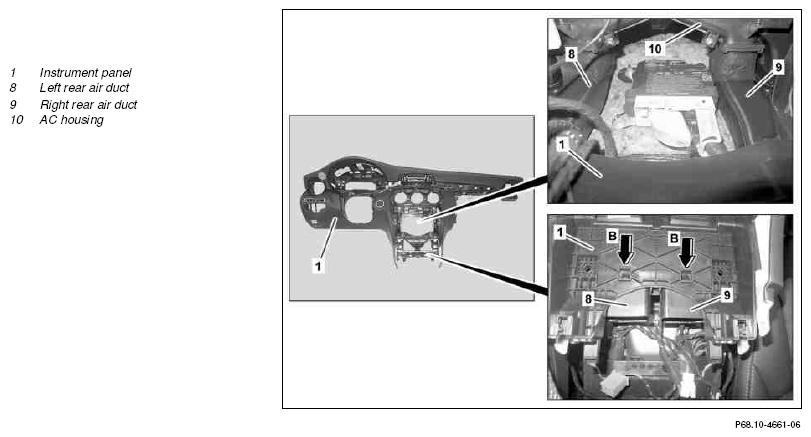

| 21.1 | Unclip left rear air duct (8) and right rear air duct (9) from instrument panel (1) (arrows B) | MODEL 205 with TRANSMISSION 722, 724, 725 |
|

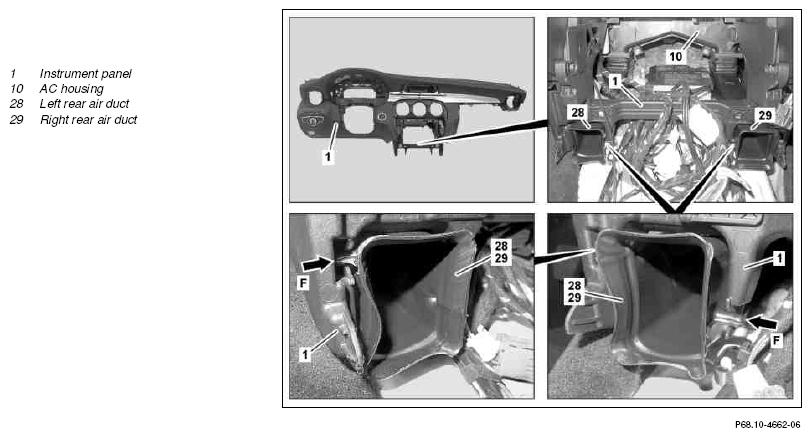

| 21.2 | Unhook left rear air duct (28) and right rear air duct (29) from instrument panel (1) (arrows F) | MODEL 205 with TRANSMISSION 716 |
|
| 22 | Unclip wiring harness from instrument panel (1) (arrow C) | Fig 8 | |

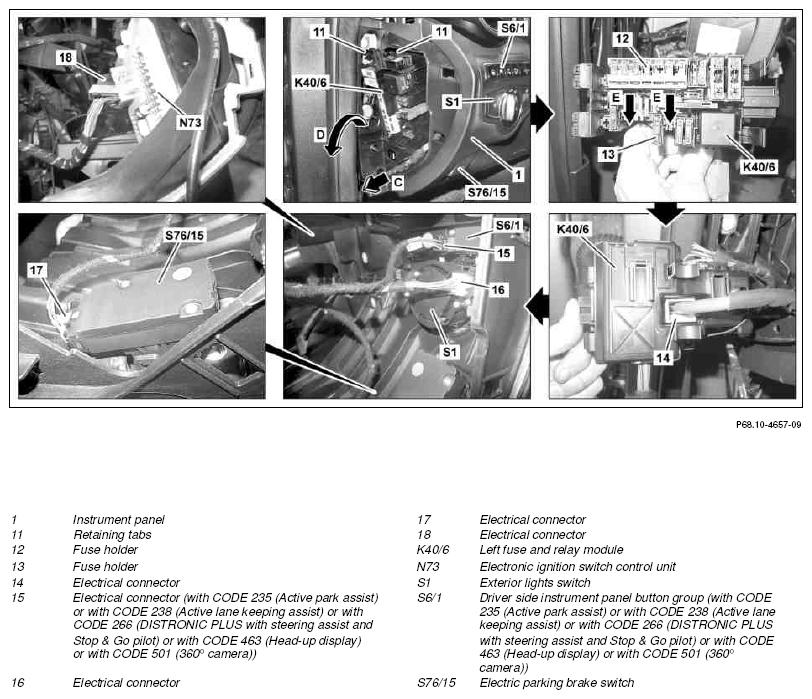

| 23 | Unlock left fuse and relay module (K40/6) at retaining tabs (11) and swivel out of instrument panel (1) (arrow D) | ||
| 24 | Unlock fuse holder (12) on left fuse and relay module (K40/6) (arrows E) and disconnect | ||
| 25 | Remove fuse holder (13) on left fuse and relay module (K40/6) | ||
| 26 | Disconnect electrical connector (14) from left fuse and relay module (K40/6) | ||
| 27 | Remove rear insulation mat from left fuse and relay module (K40/6) | ||
| 28 | Disconnect electrical connector (16) from exterior lights switch (S1) | ||
| 29 | Disconnect electrical connector (15) from driver side instrument panel button group (S6/1) | MODEL 205 with CODE 235 (Active Parking Assist) MODEL 205 with CODE 238 (Active lane keeping Assist) MODEL 205 with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) MODEL 205 with CODE 463 (Head-up display) MODEL 205 with CODE 501 (360° camera) |
|
| 30 | Disconnect electrical connection (17) from parking brake electrical switch (S76/15) | ||
| 31 | Disconnect electrical connector (18) from electronic ignition lock control unit (N73) | ||

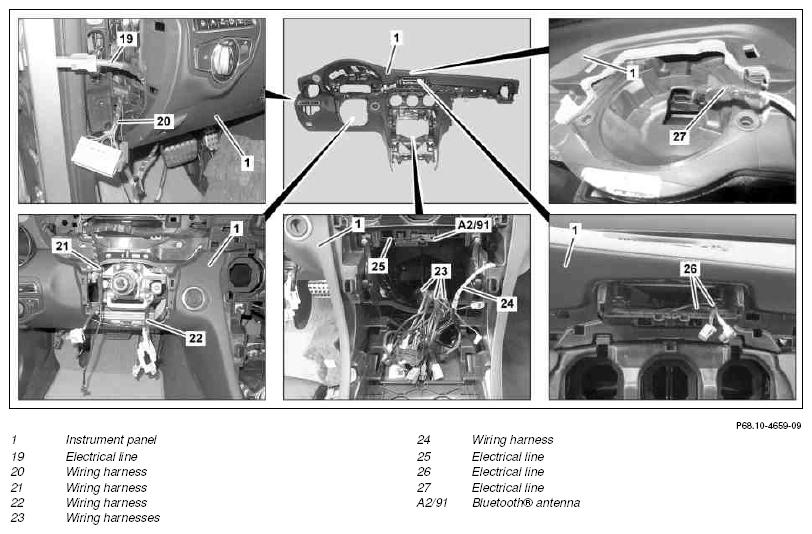

| 32 | Move electrical line (19) and wiring harness (20) out of instrument panel (1) on left | ||
| 33 | Move wiring harnesses (21 and 22) out of instrument panel (1) in area of steering column | ||
| 34 | Unhook Bluetooth® antenna (A2/91) and electrical line (25) from instrument panel (1) | ||
| 35 | Remove insulation mats in area of center console | ||
| 36 | Move wiring harnesses (23 and 24) out of instrument panel (1) in area of center console | ||
| 37 | Guide electrical lines (26) out of instrument panel (1) in upper area | ||
| 38 | Guide electrical line (27) out of instrument panel (1) at top | MODEL 205 with CODE 348 (Emergency call/assistant system) MODEL 205 with CODE 810 (Sound system) |
|
| 39 | Pull instrument panel (1) toward rear until electrical connectors (6) on passenger airbag (7) are accessible | ||
| 40 | Disconnect electrical connectors (6) from passenger airbag (7) | ||
| 41 | Remove instrument panel (1) and remove through passenger side | ||
| 42 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 205.0/1/2 | |
|---|---|---|---|
| BA91.60-P-1002-01O | Screw/bolt, front passenger airbag unit to crossmember | Nm | 3 |
