Remove/install side air nozzle - AR83.10-P-4501LW

Model 205

Model 253

Shown on model 205

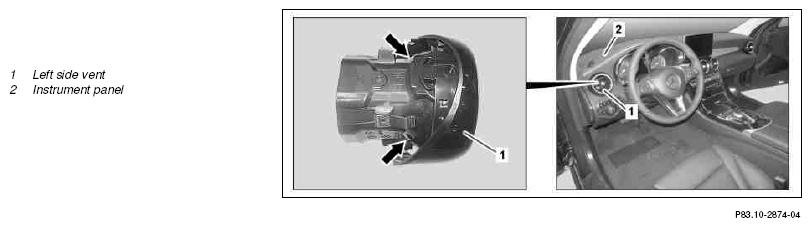

Fig 1: Identifying Side Air Nozzle Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust the steering column backwards and downwards into its final position
2	Insert extraction hook into side notches (arrows) of left side air vent (1) and pull left side air vent (1) out of instrument panel (2)	Make sure that "TOP" marking on left side air vent (1) is pointing upwards.
		Extraction hook	Fig 2
3	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
