Remove/install right air nozzle - AR83.10-P-4502LW

Model 205

Model 253

Shown on model 205

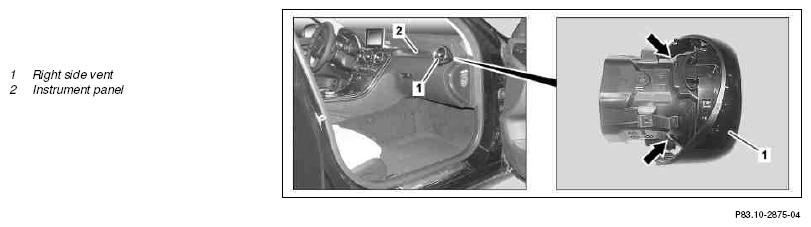

Fig 1: Identifying Right Air Nozzle Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert extraction hook into side notches (arrows) of right side air vent (1) and pull right side air vent (1) out of instrument panel (2)	Make sure that "TOP" marking on right side air vent (1) is pointing upwards.
		Extraction hook	Figure
2	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
