Remove/install glove compartment - AR68.10-P-1400LW

Model 205

Model 253

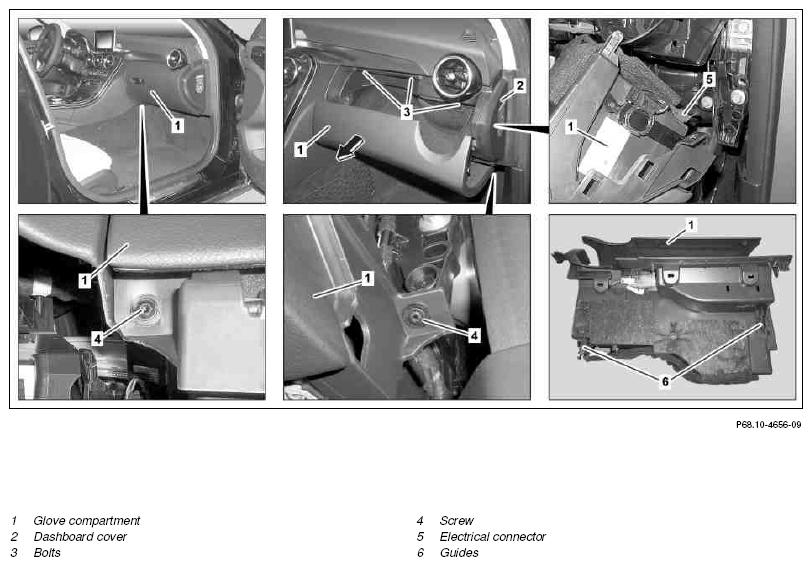

Fig 1: Identifying Glove Compartment Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code P21 (Air quality package)

	Remove/install
1	Remove cover below instrument panel on passenger side		AR68.10-P-1520LW
2	Remove instrument panel cover (2)	Mounting wedge	Figure
3	Unscrew bolts (4) at bottom of glove compartment (1)
4	Open glove compartment (1)
5	Remove flacon from odor generator	Model 205, 253 with code P21 (Air quality package)
6	Remove bolts (3)
7	Pull glove compartment (1) in direction of arrow until electrical connector (5) is accessible	Push guides (6) of glove compartment (1) into instrument panel.
8	Disconnect electrical connector and hose from odor generator	Model 205, 253 with code P21 (Air quality package)
9	Disconnect electrical connector (5) and remove glove compartment (1)	The number can vary according to the equipment.
10	Install in the reverse order
