Remove/install paneling on A-pillar - AR68.30-P-4050LW

Model 205

Model 253

Shown on model 205, on right side of vehicle

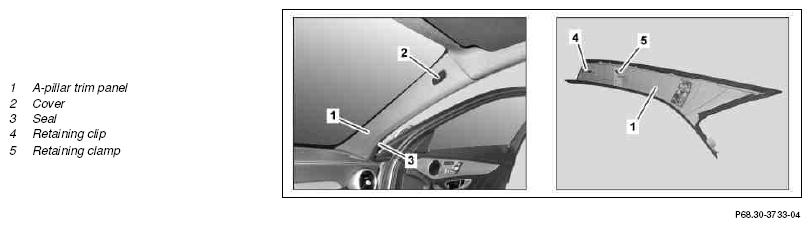

Fig 1: Identifying A-Pillar Paneling Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Loosen seal (3) in area of A-pillar paneling (1)
2	Unclip cover (2)	Clip remover	Figure
3	Unclip A-pillar paneling (1) from retaining clip (4) and from retaining clips (5) and slightly pivot toward inside at top	Mounting wedge	Figure
4	Pull A-pillar paneling (1) toward rear at top out of instrument panel and remove	Insert cover (2) into retaining clip (4) on A-pillar paneling (1).
5	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
