Remove/install center console - AR68.20-P-2000LW

MODEL 205 with TRANSMISSION 722, 724, 725

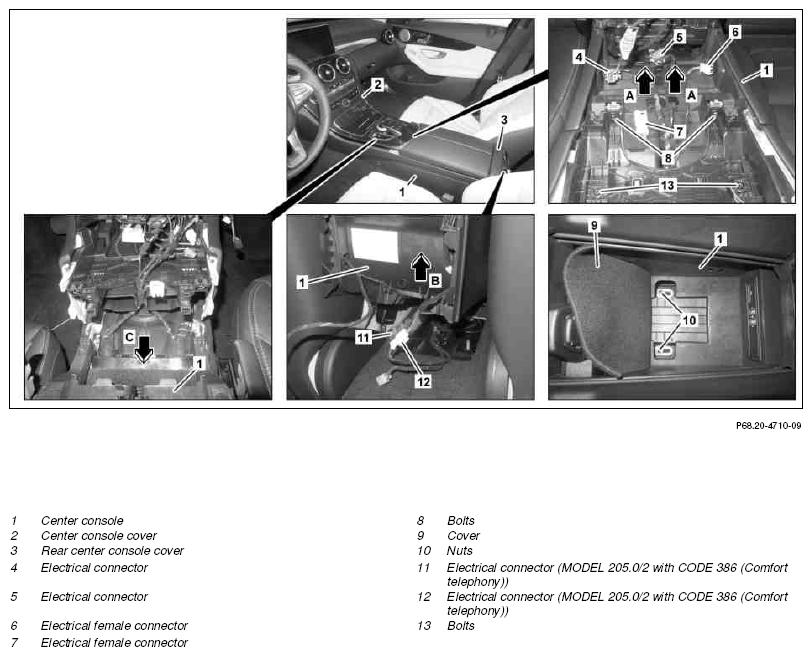

Fig 1: Identifying Center Console Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 with CODE 386 (Comfort telephony)

	Remove/install
1	Remove center console cover (2)		AR68.20-P-2350LW
2	Remove rear center console covering (3)	MODEL 205 with TRANSMISSION 722, 724, 725 with CODE 301 (Package SMOKER) MODEL 205 with TRANSMISSION 722, 724, 725 with CODE U67 (230 V socket in interior compartment) MODEL 205.0/2 with TRANSMISSION 722, 724, 725 with CODE 386 (Comfort telephony) MODEL 205.0/2 with TRANSMISSION 722, 724, 725 with CODE U80 (115 V socket)
			AR68.20-P-2358LW
3	Disconnect electrical connector (4) and unclip from center console (1)	The number can vary according to the equipment.
4	Disconnect electrical connector (5)	The number can vary according to the equipment.
5	Unclip electrical sockets (6, 7) from center console (1)	The number can vary according to the equipment.
6	Unclip wiring harness from center console (1) (arrows A)
7	Lift paneling (9) in armrest stowage compartment and lay down to side
8	Unscrew nuts (10)
9	Remove screws/bolts (13)
10	Remove screws/bolts (8)
11	Disconnect electrical connectors (11, 12) at rear from center console (1)	MODEL 205.0/2 with TRANSMISSION 722, 724, 725 with CODE 386 (Comfort telephony)
12	Lift center console (1) at rear (arrow B) and move out of instrument panel (arrow C) toward rear	Ensure that air duct is seated correctly on air conditioning housing.
13	Install in the reverse order
