Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

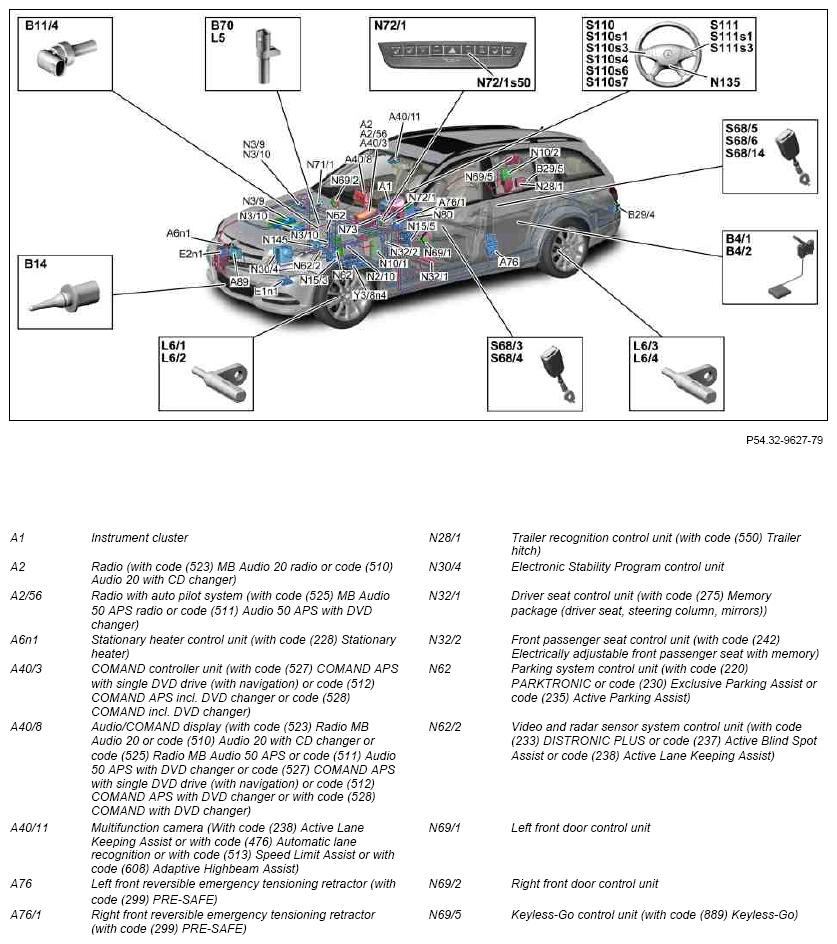

Fig 1: Overview Of Instrument Cluster System Components - Shown On Model 204.2 (1 Of 2)
G09983765Courtesy of MERCEDES-BENZ USA

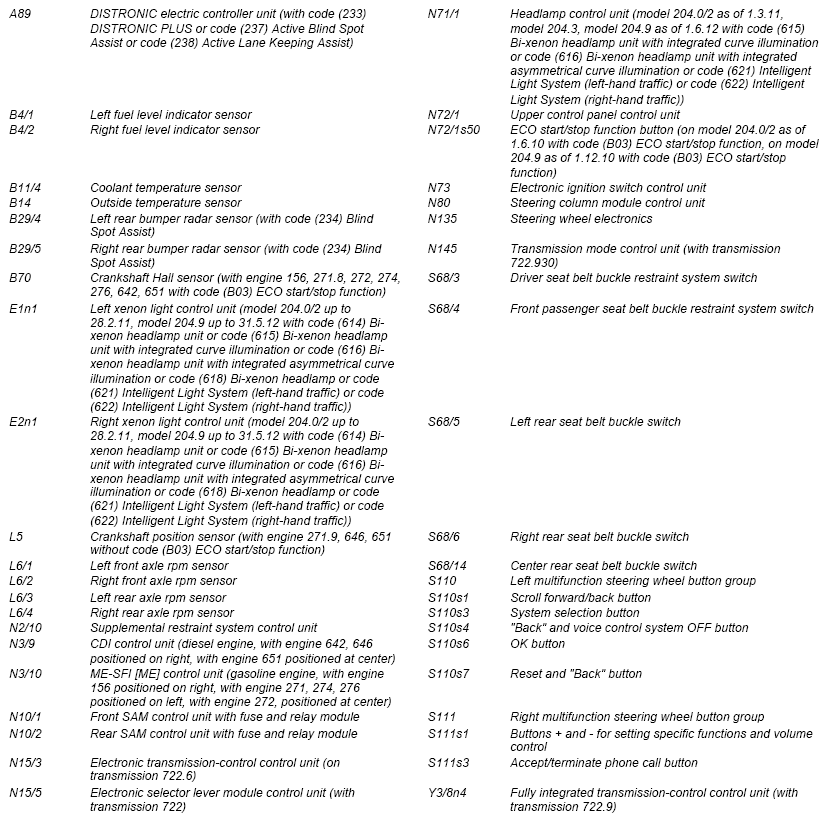

Fig 2: Overview Of Instrument Cluster System Components - Shown On Model 204.2 (2 Of 2)
G09983766Courtesy of MERCEDES-BENZ USA

Shown on model 204.2

IMPORTANT On model 204.0/9 up to 30.11.09 with code (470) Tire pressure monitor (standard), the tire pressure monitor control unit (N88) positioned on the left in the trunk.

On model 204.0/9 as of 1.12.09 and on model 204.3 with code (475) Tire pressure monitor (premium), Schrader, the tire pressure monitor control unit is on the main floor over the rear axle.

IMPORTANT On model 204.0/3/9 with code (348) Emergency call/assistance is system or code (359) TELEAID emergency call system, the emergency call system control unit (N123/4) is on the main floor over the rear axle.

Model 204.0/2/3/9 (except model 204.077/277/377) as of 1.6.12 with code (442) Comfort multifunction steering wheel shown on transmission 722

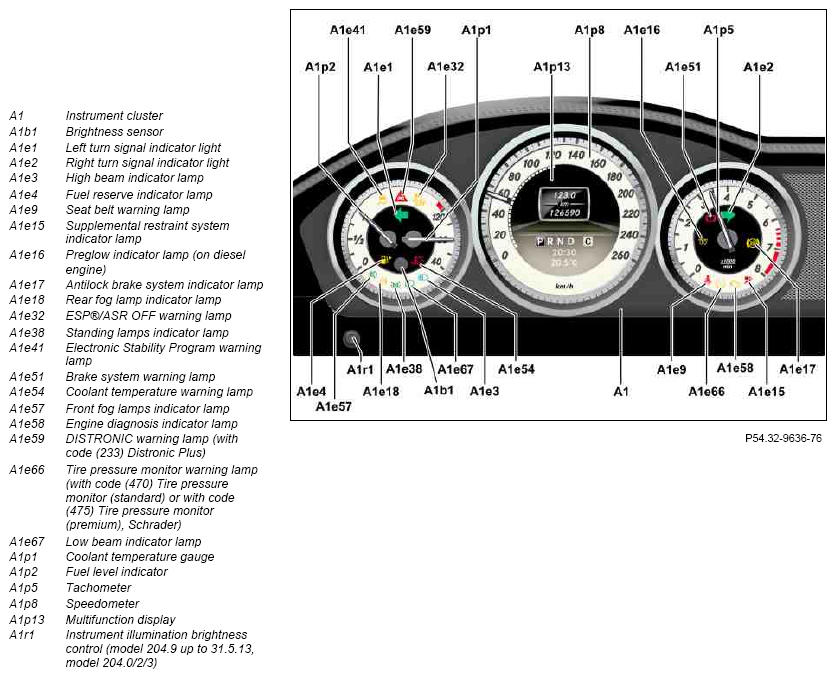

Fig 3: Overview Of Instrument Cluster System Components - Shown On Model 204.0/2/3/9
G09983767Courtesy of MERCEDES-BENZ USA

IMPORTANT The following displays, which are integrated in the instrument cluster on vehicles without code (442) Comfort multifunction steering wheel, are not shown:

IMPORTANT The ESP OFF indicator lamp (A1e30) (model 204.077/277/377) is not shown.

  Component description for instrument cluster A1 GF54.30-P-6000CE
  Component description for the radio MODEL 204.0/2 as of model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEA
MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.9 up to model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 up to model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEB
  Component description for radio with auto pilot system MODEL 204.0/2 with CODE 511 (Audio 50 APS with DVD changer) with CODE 525 (MB Audio 50 APS radio)/YoM 08
A2/56		 GF82.61-P-4112CE
  Stationary heater control unit, component description MODEL 204 with CODE 228 (Auxiliary heater) A6n1 GF83.70-P-4066CE
  Component description for COMAND controller unit MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0 as of model year 2010 up to model year 2012 with CODE 528 (COMAND with DVD changer) MODEL 204.9 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) with CODE 528 (COMAND with DVD changer)
A40/3		 GF82.85-P-3136CE
MODEL 204.0/2 as of model year 2012 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0/2 as of model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) MODEL 204.9 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer)
A40/3		 GF82.85-P-3136CEA
MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation))
A40/3		 GF82.85-P-3136CEJ
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150CE
  Component description for multifunction camera MODEL 204.0/2 as of model year 2012 with CODE 238 (Active lane keeping Assist) with CODE 476 (Lane Keeping Assist) with CODE 513 (Speed Limit Assist) with CODE 608 (Adaptive Main Beam Assist) MODEL 204.3 with CODE 238 (Active lane keeping Assist) with CODE 476 (Lane Keeping Assist) with CODE 513 (Speed Limit Assist) with CODE 608 (Adaptive Main Beam Assist) MODEL 204.9 as of model year 2013 with CODE 238 (Active lane keeping Assist) with CODE 476 (Lane Keeping Assist) with CODE 513 (Speed Limit Assist) with CODE 608 (Adaptive Main Beam Assist)
A40/11		 GF54.21-P-3300CE
  Component description for front reversible emergency tensioning retractors MODEL 204.0/2 as of model year 2009 with CODE 299 (PRE-SAFE) MODEL 204.3 with CODE 299 (PRE-SAFE) MODEL 204.9 with CODE 299 (PRE-SAFE)
A76, A76/1		 GF91.40-P-4020CE
  Component description for DISTRONIC electric controller unit MODEL 204.0/2 as of model year 2012 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) MODEL 204.3 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) MODEL 204.9 as of model year 2013 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist)
A89		 GF30.30-P-3213CE
  Component description for intelligent radar sensor control unit MODEL 204.0/2 as of model year 2012 with CODE 234 (Blind Spot Assist) MODEL 204.3 with CODE 234 (Blind Spot Assist) MODEL 204.9 as of model year 2013 with CODE 234 (Blind Spot Assist)
B29/4, B29/5		 GF30.30-P-3305CE
  Component description for Xenon light control unit MODEL 204.0/2 up to 2/28/11 as of model year 2009 with CODE 614 (Bi-xenon headlamp unit) with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) with CODE 618 (Bi-xenon headlamps) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic)) E1n1, E2n1 GF82.10-P-2119CE
MODEL 204.9 up to 5/31/12 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic)) E1n1, E2n1 GF82.10-P-2119GD
  Component description for supplemental restraint system control unit N2/10 GF91.60-P-4068CE
  Component description for CDI control unit MODEL 204 with ENGINE 642.8 as of model year 2009
N3/9		 GF07.16-P-6000OG
MODEL 204.0 with ENGINE 642.9 as of model year 2009MODEL 204.2 with ENGINE 642.9 as of model year 2009MODEL 204.9 with ENGINE 642.9
N3/9		 GF07.16-P-6000OH
MODEL 204.0 with ENGINE 646.8 as of model year 2009MODEL 204.2 with ENGINE 646.8 as of model year 2009
N3/9		 GF07.16-P-6000OL
MODEL 204 (except 204.9), 204.9 up to 5/31/12 with ENGINE 651.9 as of model year 2009
N3/9		 GF07.16-P-6000OM
MODEL 204.9 as of 6/1/12 with ENGINE 651.9
N3/9		 GF07.16-P-6000OGB
  Component description for ME-SFI (ME) control unit MODEL 204 with ENGINE 156.9 as of model year 2009
N3/10		 GF07.61-P-6000MAW
MODEL 204 with ENGINE 271.8 as of model year 2009
N3/10		 GF07.61-P-6000MG
MODEL 204.041/241 with ENGINE 271.950 as of model year 2009MODEL 204.044/045/245 with ENGINE 271.910 as of model year 2009MODEL 204.046/246 with ENGINE 271.952 as of model year 2009
N3/10		 GF07.61-P-6000MFW
MODEL 204.0/2 with ENGINE 272.9 (except 272.982) as of model year 2009MODEL 204.9 with ENGINE 272.9
N3/10		 GF07.61-P-6000MI
MODEL 204.0 with ENGINE 272.982 as of model year 2009
N3/10		 GF07.61-P-6000MIE
MODEL 204 with ENGINE 274.9 as of model year 2009
N3/10		 GF07.61-P-6000MR
MODEL 204 with ENGINE 276.9 as of model year 2009
N3/10		 GF07.61-P-6000MM
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070CE
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030CE
  Component description for electronic transmission control control unit MODEL 204.0 (except 204.049) with TRANSMISSION
722.618/640/646/694/695/696/699 as of model year 2012MODEL 204.2 (except 204.249) with TRANSMISSION
722.618/640/646/694/695/696/699 as of model year 2012
N15/3		 GF27.60-P-5164ACW
  Component description for electronic selector lever module control unit MODEL 204.0 (except 204.049) with TRANSMISSION
722.618/640/646/694/695/696/699 as of model year 2012MODEL 204.2 (except 204.249) with TRANSMISSION
722.618/640/646/694/695/696/699 as of model year 2012
N15/5		 GF27.60-P-5163ACW
MODEL 204.0 with TRANSMISSION 722.9 (except 722.930) as of model year 2009MODEL 204.2 with TRANSMISSION 722.9 (except 722.930) as of model year 2009MODEL 204.3 with TRANSMISSION 722.9 (except 722.930) MODEL 204.9 with TRANSMISSION 722.9
N15/5		 GF27.60-P-5163AHW
  Component description for trailer recognition control unit MODEL 204.0/2 as of model year 2009 with CODE 550 (Trailer coupling) MODEL 204.3 with CODE 550 (Trailer coupling) MODEL 204.9 with CODE 550 (Trailer coupling)
N28/1		 GF31.19-P-4050CE
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119CE
  Component description for driver seat control unit MODEL 204.0/2 as of model year 2009 with CODE 275 (Memory package (driver seat, steering column, mirrors)) MODEL 204.3 with CODE 275 (Memory package (driver seat, steering column, mirrors)) MODEL 204.9 with CODE 275 (Memory package (driver seat, steering column, mirrors))
N32/1		 GF91.29-P-5231CE
  Component description for front passenger seat control unit MODEL 204.0/2 as of model year 2009 with CODE 242 (Electrically adjustable front passenger seat with memory) MODEL 204.3 with CODE 242 (Electrically adjustable front passenger seat with memory) MODEL 204.9 with CODE 242 (Electrically adjustable front passenger seat with memory)
N32/2		 GF91.29-P-5241CE
  Parking system control unit component description MODEL 204.9 with CODE 235 (Active Park Assist)/model refinement package 12
N62		 GF54.65-P-5002CE
  Component description for video and radar sensor system control unit MODEL 204.0/2 as of model year 2012 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) MODEL 204.3 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) MODEL 204.9 as of model year 2013 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist)
N62/2		 GF30.30-P-3304CE
  Component description for left front door control unit N69/1 GF72.29-P-6001CE
  Component description for right front door control unit N69/2 GF72.29-P-6009CE
  Component description for KEYLESS-GO control unit MODEL 204.0/2 as of model year 2009 with CODE 889 (Keyless Go) MODEL 204.3 with CODE 889 (Keyless Go) MODEL 204.9 with CODE 889 (Keyless Go)
N69/5		 GF80.61-P-4204CE
  Headlamp control unit, component description MODEL 204.9 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic))/model refinement package 12
N71/1		 GF82.10-P-2020CE
  Upper control panel control unit, component description N72/1 GF54.21-P-6040CE
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001CE
  Component description for steering column tube module control unit N80 GF54.21-P-6051CE
  Component description for tire pressure monitor control unit MODEL 204.0 as of model year 2009 up to model year 2010 with CODE 470 (Tire pressure monitor (base)) SchraderMODEL 204.9 with CODE 470 (Tire pressure monitor (base))/AEJ 09, Schrader company
N88		 GF40.15-P-5124CE
MODEL 204.0/9 as of model year 2009 with CODE 475 (Tire pressure monitor (premium)) SchraderMODEL 204.3 with CODE 475 (Tire pressure monitor (premium)) Schrader
N88		 GF40.15-P-5124CEA
  Component description for emergency call system control unit MODEL 204.0 as of model year 2009 with CODE 359 (TELE AID emergency call system) MODEL 204.3/9 with CODE 359 (TELE AID emergency call system)
N123/4		 GF82.95-P-3212CEU
MODEL 204 as of model year 2009 with CODE 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212CEV
  Component description for transmission mode control unit MODEL 204.0/2 with TRANSMISSION 722.930 as of model year 2009MODEL 204.3 with TRANSMISSION 722.930
N145		 GF27.19-P-1350AHV
  Component description for fully integrated transmission control unit MODEL 204.0 with TRANSMISSION 722.9 (except 722.930) as of model year 2009MODEL 204.2 with TRANSMISSION 722.9 (except 722.930) as of model year 2009MODEL 204.3 with TRANSMISSION 722.9 (except 722.930) MODEL 204.9 with TRANSMISSION 722.9
Y3/8n4		 GF27.60-P-5165AHW
MODEL 204.0/2 with TRANSMISSION 722.930 as of model year 2009MODEL 204.3 with TRANSMISSION 722.930
Y3/8n4		 GF27.60-P-5165AHV
  Table of contents for function description of instrument cluster (IC)   GF54.30-P-0997CE
