Component description for electronic selector lever module control unit - GF27.60-P-5163AHW
TRANSMISSION 722.9 (except 722.930) in MODEL 204.0 as of model year 2009
TRANSMISSION 722.9 (except 722.930) in MODEL 204.2 as of model year 2009
TRANSMISSION 722.9 (except 722.930) in MODEL 204.3
TRANSMISSION 722.9 in MODEL 204.9
The transmission mode "M" is only available with code 950 (Sport package). Vehicles without Sport package do not have transmission mode "M". On these vehicles, the transmission mode "M" is replaced by the "Short-term M mode".
Location
The electronic selector lever module control unit is located under the center console between the two front seats.

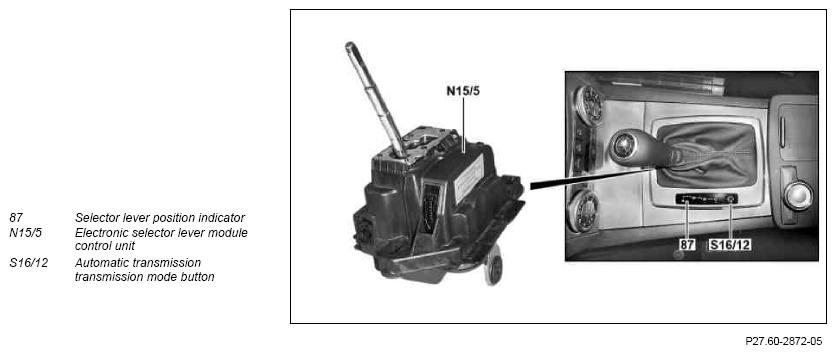

View of center console with code 950 (Sport package)
Task
General
The electronic selector lever module control unit records the positions of the selector lever (non-contact) using inductive sensors.
The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.
Basic functions
- Read in signals from the automatic transmission transmission mode button
- Communication of selector lever positions "P, R, N, D" and touch shifts "1, 2, 3, 4, 5, 6, 7"
Shift lock function
- Park pawl
- Ignition lock lock
- Selector lever position "P" lock
- Shift lock override (Manual unlocking, selector lever position "P")
Flash programming
The electronic selector lever module control unit is flashable, i.e., the control unit's complete software can be exchanged (replaced).
The software required to program the control units is stored on the STAR DIAGNOSIS DAS Update DVD.
CAN data bus
The electronic selector lever module control unit is connected via the drive train CAN (CAN C) to the vehicle's CAN network, and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the electronic selector lever module control unit and the corresponding output signals issued:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 30g
- circuit 31
- Selector lever position
- Status of automatic transmission transmission mode button
- Push button +/-
Direct output signals
- Selector lever positions R and P locking solenoid (Y66/2)
- Function illumination for selector lever position "P, R, N, D" (with code (494) USA version)
- Switch and controls illumination "circuit 58d" for gear indicator
CAN input signals
Instrument cluster (A1)
- Circuit 58 dimmed
Electronic Stability Program control unit (N30/4)
- Wheel speed signals
- braking torque
Electronic ignition lock control unit (N73)
- Circuit 50 signal
- Circuit 15 signal
- Stop lamp actuation feedback
- Drive authorization system (DAS)
Steering column tube module control unit (N80)
- Signal for steering wheel downshift button (S110/1) (with code (428) Steering wheel shift paddles)
- Signal for steering wheel upshift button (S111/1) (with code (428) Steering wheel shift paddles)
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis request
CAN output signals
Instrument cluster (A1)
- Selector lever position for the gear indicator (A1p12)
- Program selection for transmission mode display (A1p16)
CDI control unit (N3/9) or ME-SFI [ME] control unit (N3/10)
- Selector lever position
Electronic ignition lock control unit (N73)
- Selector lever position for reversing lamp actuation
- Enable request (DAS)
Transmission control fully electronic control unit (Y3/8n4)
- Selector lever position
- Transmission mode selection
Front SAM control unit with fuse and relay module (N10/1)
- Diagnostic data
| Wiring diagram for electronic selector lever module control unit | PE27.19-P-2102-97FAA | ||
| Wiring diagram for fully integrated transmission control unit | PE27.19-P-2103-97FAA |
