Partially replace front cross member - AR62.30-P-1350V: Notes
MODEL 171
| Remove | |||
|---|---|---|---|
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and undeburred vehicle parts. | - | |
| Deburr replacement panels. | |||
| Risk of death caused by high voltage used for arc welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding spatter and UV-light while welding. Risk of poisoning caused by inhaling welding vapors. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor. | - | |
| 1 | Remove front bumper | AR88.20-P-2000V | |
| 2 | Remove front headlamp unit | When removing left and right front headlamp unit | AR82.10-P-4730V |
| 3 | Remove detachable parts in area to be repaired | ||
| 4 | Cover all attached parts remaining in vehicle | Tarpaulin (fireproof) | *WH58.30-Z-1001-40A |

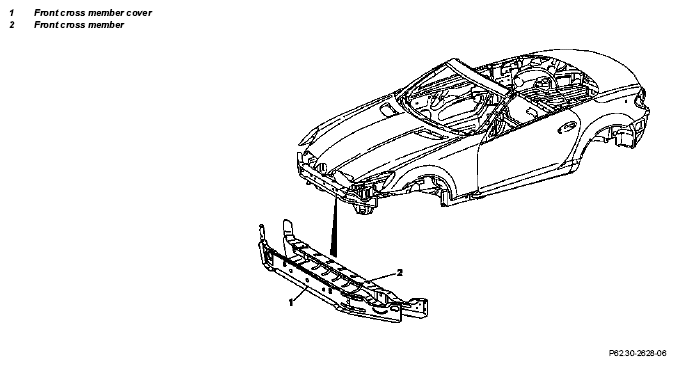

| 5 | Partially replace front cross member (2) | AR62.30-P-1350-04V | |
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1024-04A | |||
| *WH58.30-Z-1021-04A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Straight grinder (electric/pneumatic) | *WE58.40-Z-1002-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Body saw (electric/pneumatic) | *WE58.40-Z-1004-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 6 | Partially prepare front cross member (2) | AR62.30-P-1350-05V | |
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1024-04A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Body saw (electric/pneumatic) | *WE58.40-Z-1004-03A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 7 | Install welding device | AR62.20-P-1286-05V | |
| 8 | Partially install front cross member (2) | AR62.30-P-1350-06V | |
| Figure | |||
| Figure | |||
| *WH58.30-Z-1003-01A | |||
| *WH58.30-Z-1001-03A | |||
| *WH58.30-Z-1003-02A | |||
| *WH58.30-Z-1024-04A | |||
| Insert gas welder | *WE58.40-Z-1001-02A | ||
| Spot welder | *WE58.40-Z-1002-02A | ||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Straight grinder (electric/pneumatic) | *WE58.40-Z-1002-03A | ||
| Angular grinder (electric/pneumatic) | *WE58.40-Z-1003-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 9 | Remove welding device | AR62.20-P-1286-05V | |
| 10 | Carry out seam sealing after repairs | AR97.10-P-4000V | |
| Supplement standard sealing with MB body sealant. | |||
| Sealant | *BR00.45-Z-1003-01A | ||
| Seam sealant, sprayable 310 ml | *BR00.45-Z-1041-01A | ||
| 11 | Paint repair areas and adjacent surfaces | ||
| 12 | Apply additional cavity preservation | AR97.20-P-1500V | |
| Cavity preservation gun Sata HRS no. 11072 | *WE58.40-Z-1006-08A | ||
| Preservation agent | *BR00.45-Z-1003-05A | ||
| 13 | Remove tarpaulin | ||
| 14 | Install front lamp unit | When removing left and right front headlamp unit | AR82.10-P-4730V |
| 15 | Install front bumper | AR88.20-P-2000V | |
| 16 | Install all removed detachable body components |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1006-08A | Cavity preservation gun |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
