Partially install front cross member - AR62.30-P-1350-06V
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

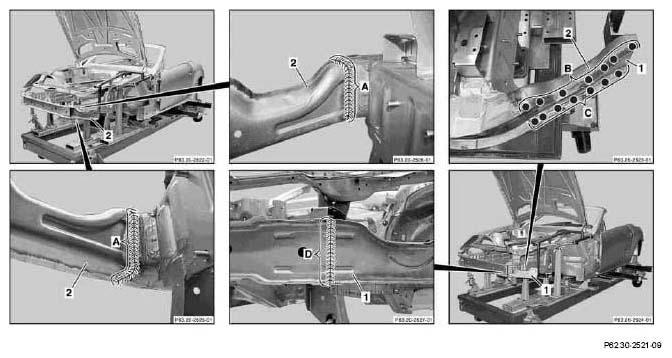

The following steps apply for the left side of the front cross member section (2) and should be performed on the right side in the same manner when damaged
- Install front cross member section (2) with
welding device, fit and fasten with
clamping pliers.
- Weld in front cross member (2) with
(area A).
- Grind weld in connection area for front cross member cover (1) down flat.
- Clean weld
- Coat insides of weld on front cross member (2) with zinc dust paint.
- Install front cross member cover (1), fit and fasten with
- Weld in front cross member cover (1) with
(areas B and C).
- Weld in front cross member cover (1) with
- Clean welds with
- Remove grinding and drilling chips with wet/dry vacuum cleaner.
