Install welding device - AR62.20-P-1286-05V

Fig 1: Identifying Welding Device (171 589 01 23 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Welding Device (171 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

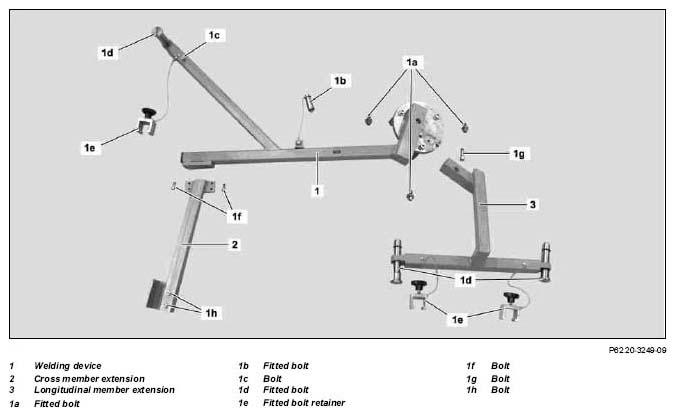

Fig 3: Identifying Welding Device With Associated Components

Courtesy of MERCEDES-BENZ USA

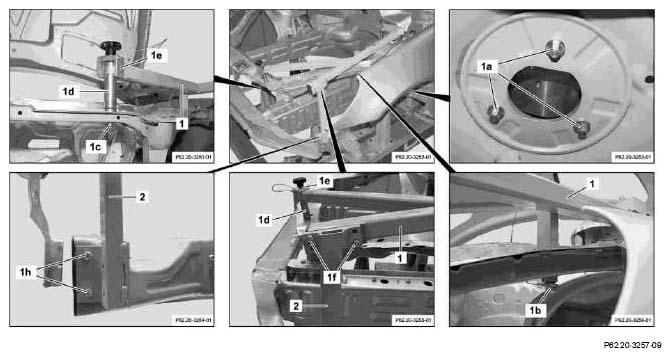

Fig 4: Identifying Welding Device With Bolts

Courtesy of MERCEDES-BENZ USA

The following steps apply for the left side of the front upper longitudinal member (1) and should be performed, when damaged, on the right side in the same manner.

1. Position welding device (1) on suspension strut tower and on front reinforcement.
2. Fasten welding device (1) with bolts (1a) and fitted bolt (1b).
3. Insert fitted bolt (1d) through welding device (1) into front reinforcement and fasten with fitted bolt retainers (1e).
4. Fasten fitted bolt (1d) with bolt (1c) to front reinforcement.
5. Fasten cross member extension (2) to welding device (1) with bolts (1f).
6. Fasten cross member extension (2) to front cross member with bolts (1h).

   The following steps apply only when using with longitudinal member extension (3).

7. Fasten longitudinal member extension (3) to welding device (1) with bolt (1g).
8. Insert fitted bolt (1d) through longitudinal member extension (3) into front upper longitudinal member and fasten with fitted bolt retainers (1e)

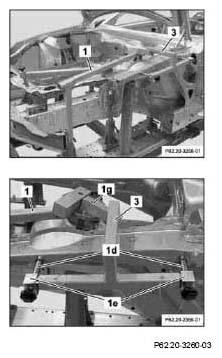

   Fig 5: Identifying Longitudinal Member Extension And Welding Device

   Courtesy of MERCEDES-BENZ USA
