Remove/install oil pan - AR01.45-P-7500GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

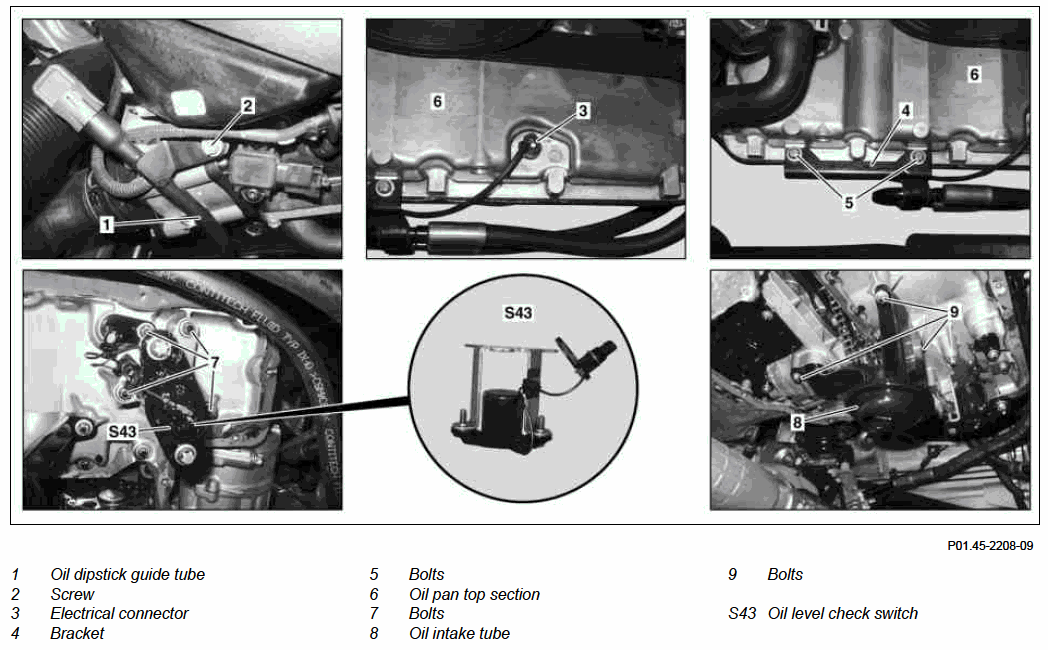

Fig 1: Removing/Installing Oil Pan (1 Of 2)
G00544416Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

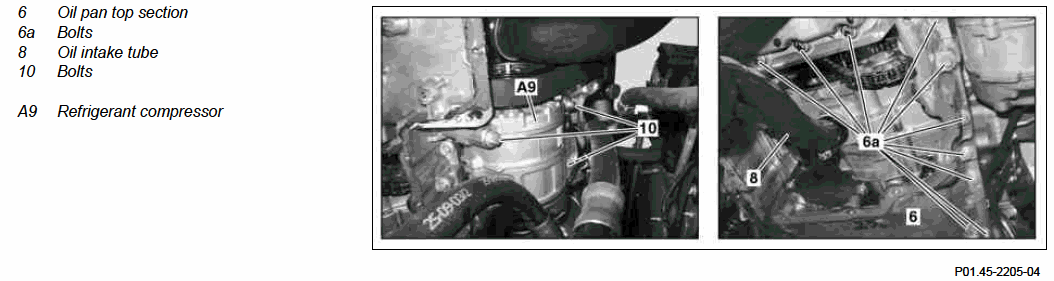

Fig 2: Removing/Installing Oil Pan (2 Of 2)
G00544417Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Remove strut tower brace Model 164.8 only
Remove strut tower brace from strut tower mounts.		 AR62.30-P-2500GY
2 Remove engine trim panel   AR01.10-P-2405GZB
3 Remove oil dipstick guide tube (1) Unscrew bolt (2), pull oil dipstick guide tube (1) upward and turn to one side.
Installation:  Replace sealing ring!		 AR18.40-P-3510GZB
    TORQUE SPECIFICATION *BA01.45-P-1012-01Q
4 Mount the engine carrier arm and attach the engine When attaching the engine, take care not to damage any of the lines. AR33.10-P-0100-01GZ
    SPECIAL TOOL Engine hoist Fig 3
5 Partially remove poly-V belt Only remove poly-V belt from belt pulley on refrigerant compressor (A9). AR13.20-P-0001GZB
6 Disconnect electrical connector (3) at oil level check switch (S43)
7 Remove bolts (5) on bracket (4) for power steering lines oil pan top section (6) TORQUE SPECIFICATION *BA01.45-P-1004-01Q
8 Remove bottom section of soundproofing   AR94.30-P-5300GZ
9 Drain engine oil, collect if necessary TORQUE SPECIFICATION *BA01.45-P-1006-01Q
10 Remove transmission   AR27.10-P-0500GZ
11 Remove oil pan bottom section   AR01.45-P-7555GZB
12 Remove oil level check switch (S43) Remove bolts (7) and remove oil level check switch (S43).
TORQUE SPECIFICATION *BA18.40-P-1003-01M
13 Remove bolts (9) on oil intake tube (8) Check sealing ring, replace if necessary.
    TORQUE SPECIFICATION *BA01.45-P-1005-01Q
14 Remove bolts (10) on refrigerant compressor (A9) IMPORTANT Warm sealing surfaces on oil pan (9) in order to achieve better removal of the sealant. Observe correct path of sealant on bottom section of oil pan. AR01.45-P-7555GZB
TORQUE SPECIFICATION Oil pan bottom section to oil pan top section *BA01.45-P-1003-01Q
    Place refrigerant compressor (A9) with connected lines to the side.
    TORQUE SPECIFICATION *BA83.55-P-1001-01R
15 Remove both brackets for transmission oil lines on oil pan top section (6) TORQUE SPECIFICATION *BA27.55-P-1003-01D
16 Remove end cover Installation:  Replace crankshaft radial sealing ring. AR01.40-P-8913GZB
17 Unscrew bolts (6a) and remove oil pan top section (6) Heat up the sealing surfaces on oil pan top section (6) so that the sealant can be loosened more easily. Take out oil pan top section (6) in direction of travel towards the front and also turn crankshaft slightly as required.
IMPORTANTInstallation:  Observe different bolt lengths and diameters: ↓
Bolt plan for oil pan AR01.45-P-7500-06GZB
TORQUE SPECIFICATION *BA01.45-P-1001-01Q
TORQUE SPECIFICATION *BA01.45-P-1002-01Q
TORQUE SPECIFICATION *BA01.45-P-1007-01Q
TORQUE SPECIFICATION *BA01.45-P-1008-01Q
TORQUE SPECIFICATION *BA01.45-P-1009-01Q
IMPORTANT Notes on sealant path for oil pan AH01.45-P-0001-01OM
Loctite 5970 sealant *BR00.45-Z-1013-01A
CLEAN Clean
18 Clean sealing surfaces NOTES Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
Loctite 7200 *BR00.45-Z-1038-04A
Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
19 Install in the reverse order
20 Check engine oil level IMPORTANT In order to avoid measurement errors, vehicle must be parked on an even surface.
Shut off engine once it has reached operating temperature and wait approx. 5 minutes before checking engine oil level.		 AR18.00-P-3035-01PI
FLUID SPECIFICATION With code 474 Particulate filter *BF18.00-P-1001-01A
FLUID SPECIFICATION Without particulate filter *BF18.00-P-1001-01S
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
21 Conduct engine test run and check engine for leaks while it is running
22 Read out fault memory and erase if necessary
Connect STAR DIAGNOSIS and read out fault memory		   AD00.00-P-2000-04A
23 Perform basic programming   AR00.19-P-0200GZ
REFRIGERANT COMPRESSOR

Number Designation Model 164.1/8
BA83.55-P-1001-01R Bolt, refrigerant compressor to timing case and left engine support Nm 20
OIL LEVEL/OIL PRESSURE SENSOR

Number Designation Engine 642
BA18.40-P-1003-01M Bolt at oil level check switch Nm 11
TRANSMISSION OIL COOLING SYSTEM

Number Designation Transmission 722.9
BA27.55-P-1003-01D Bolt, oil cooler line to engine oil pan Nm 12
OIL PAN

Number Designation Engine 642
BA01.45-P-1001-01Q Oil pan top section to cylinder block top at front M6 Nm 14
BA01.45-P-1002-01Q Oil pan top section to cylinder crankcase on transmission side M8 Nm 20
BA01.45-P-1004-01Q Bracket on top part of oil pan M6 Nm 14
M8 Nm 20
BA01.45-P-1005-01Q Oil suction pipe on oil pan and cylinder head cover M6 Nm 14
BA01.45-P-1006-01Q Oil drain screw to oil pan M12 Nm 30
M24 Nm 45
BA01.45-P-1007-01Q Bolt, oil pan to cylinder crankcase M6 Nm 14
M8 Nm 20
M10 Nm -
BA01.45-P-1008-01Q Bolt, oil pan to timing case cover M6 Nm 14
BA01.45-P-1009-01Q Bolt, oil pan to crankshaft housing sealing at the rear M6 Nm 14
BA01.45-P-1012-01Q Bolt, oil dipstick guide tube to muffler bracket M6 Nm 14
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity
(oil and filter change)		 Liters 8.5
Specifications for Operating Fluids Sheet BB00.40-P-0228-03A
Sheet BB00.40-P-0228-05A
Sheet BB00.40-P-0228-51A
Sheet BB00.40-P-0229-03A
Sheet BB00.40-P-0229-31A
Sheet BB00.40-P-0229-05A
Sheet BB00.40-P-0229-51A
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity
(oil and filter change)		 Liters 8.5
Specifications for Operating Fluids Sheet BB00.40-P-0228-51A
Sheet BB00.40-P-0229-31A
Sheet BB00.40-P-0229-51A
Fig 3: Identifying Engine Lifting Fixture (240 589 00 61 00)
G07741024Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite sealant 5970 A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
Arabellastrasse 17
81925 Munchen
Germany
Tel. +49 899268-0
Fax + 49 899101978
www.Loctite.de
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
