Notes on sealant path for oil pan - AH01.45-P-0001-01OM

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

OM642

General information:

Sealing surface:
- free of anticorrosion agent
- free of machining residues
- oil and grease-free
- dust-free
The sealing surface must be flat (replace bent components).
Line (A) identifies the sealant run.
Discontinuity of the sealant bead is not permissible.
Do not spread sealing bead.
Component temperature: min. +7°C up to a max. of +25°C
Sealant temperature: min. +7°C up to a max. of +25°C
Maximum assembly time: 7 minutes
Sealant bead diameter: 2 mm
Nozzle diameter: 1.5 mm

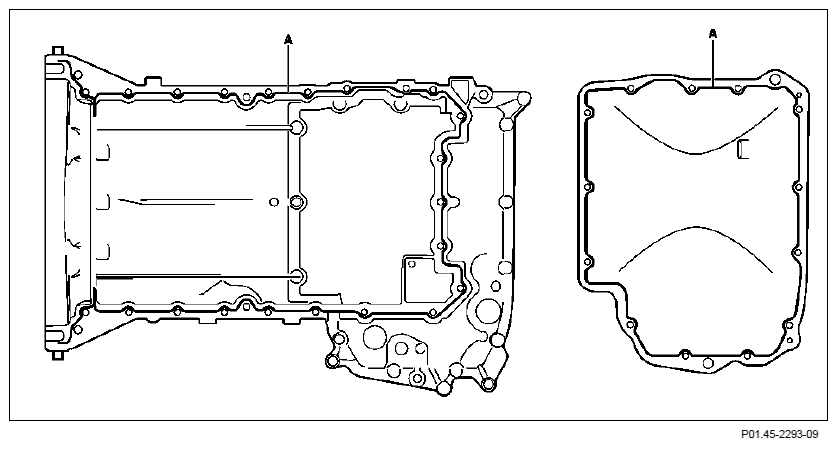

Fig 1: Identifying Oil Pan Sealant Run - Engine 642.910/920/852
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 642.910/920/852

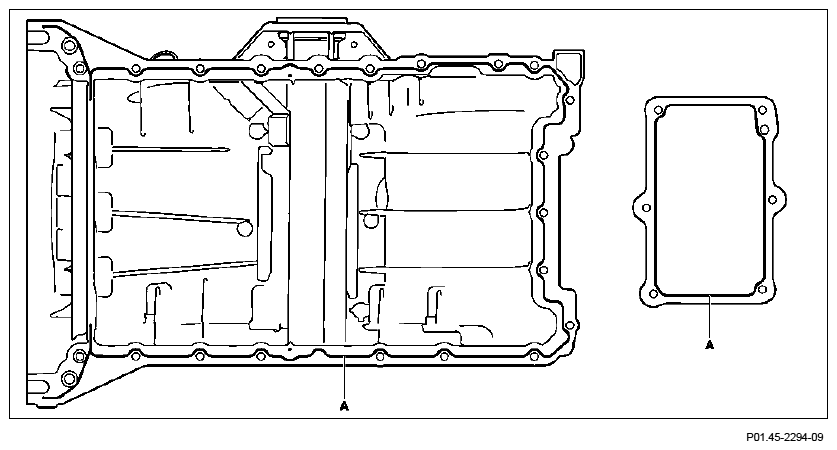

Fig 2: Identifying Oil Pan Sealant Run - Engine 642.930/862

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 642.930/862

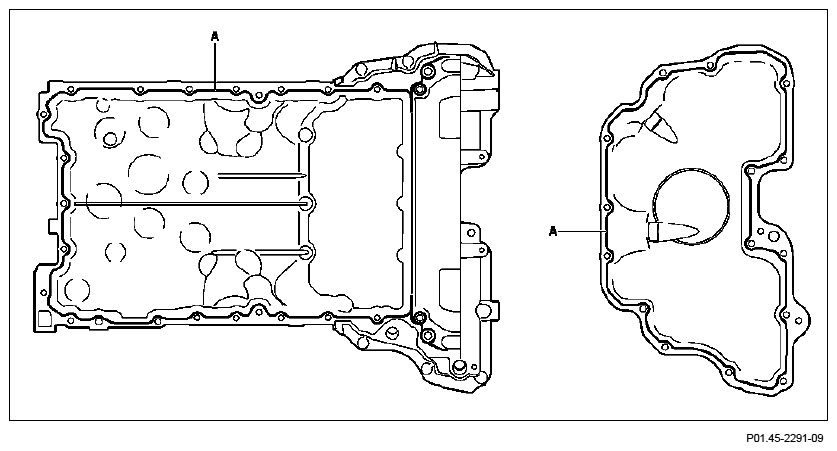

Fig 3: Identifying Oil Pan Sealant Run - Engine 642.921/932/961/868

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 642.921/932/961/868

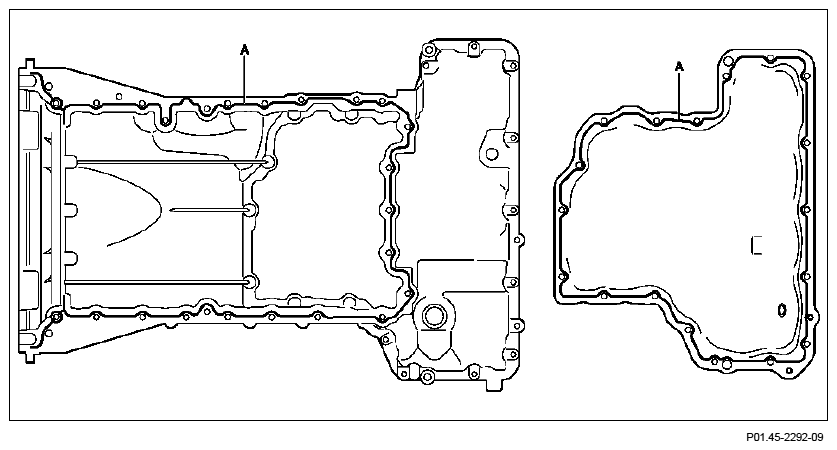

Fig 4: Identifying Oil Pan Sealant Run - Engine 642.940/950/872

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 642.940/950/872
