Remove/install bottom part of oil pan - AR01.45-P-7555GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 164
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Removes strut tower brace | Model 164.8 only Remove strut tower brace from strut tower mounts. |
AR62.30-P-2500GY |
| 2 | Remove engine trim panel | AR01.10-P-2405GZB | |
| 3 | Mount the engine lifting device and attach engine | Observe manufacturer's assembly specifications and safety information. | AR33.10-P-0100-01GZ |
| Figure | |||
| 4 | Remove oil dipstick guide tube | AR18.40-P-3510GZB | |
| 5 | Remove bottom sections of soundproofing | Installation: Only install lower sections of soundproofing after checking for leaks. | AR94.30-P-5300GZ |
| 6 | Drain engine oil, collect if necessary | *BA01.45-P-1006-01Q | |
| 7 | Loosen bolts on the engine mount at the front axle carrier | *BA22.10-P-1001-03G | |

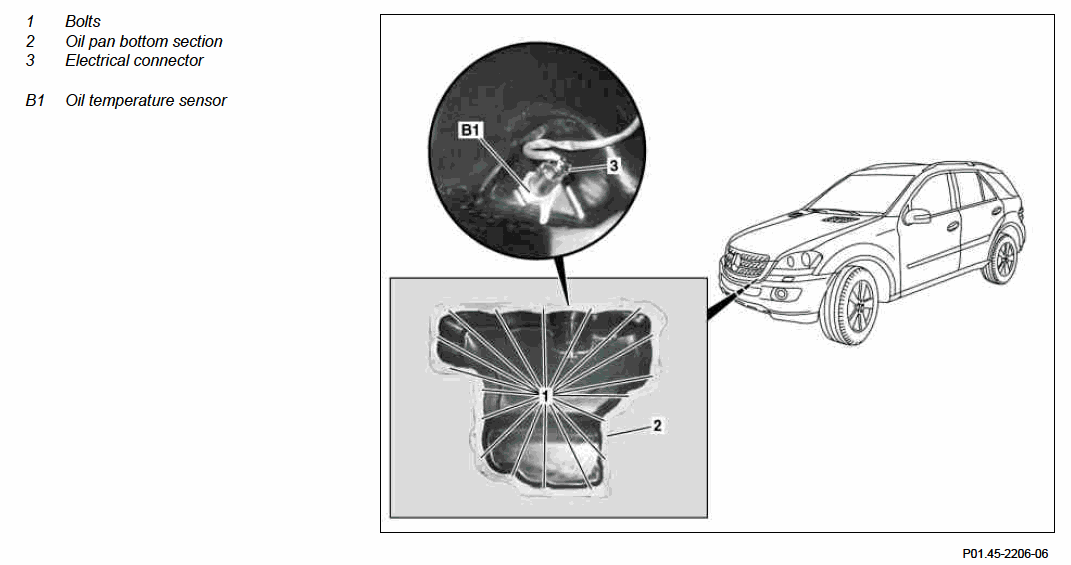

| 8 | Disconnect electrical connector (3) from oil temperature sensor (B1) | ||
| 9 | Raise engine | ||
| 10 | Unscrew bolts (1) and take off oil pan bottom section (2) | ||
| Notes on sealant path for oil pan | AH01.45-P-0001-01OM | ||
| *BA01.45-P-1003-01Q | |||
| Loctite sealant 5970 | *BR00.45-Z-1013-01A | ||
| Clean | |||
| 11 | Clean sealing surfaces | AR01.00-P-0050-01A | |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Cleaning spray, Loctite 7063 (150ml) | *BR00.45-Z-1046-04A | ||
| 12 | Install in the reverse order | ||
| 13 | Check engine oil level | In order to avoid measurement errors, vehicle must be parked on an even surface. Inspect engine oil level about 5 min. after switching off warm engine |
AR18.00-P-3035-01PI |
| *BF18.00-P-1001-01A | |||
| *BF18.00-P-1001-01S | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it moving off. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 14 | Carry out engine test run | Check for leakage when engine is running. | |
| 15 | Read out fault memory and erase if necessary Connect STAR DIAGNOSIS and read out fault memory |
AD00.00-P-2000-04A |
OIL PAN
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA01.45-P-1003-01Q | Oil pan bottom section to oil pan top section | M6 | Nm | 14 |
| BA01.45-P-1006-01Q | Oil drain screw to oil pan | M12 | Nm | 30 |
| M24 | Nm | 45 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1001-03G | Bolt, front engine mount to front axle carrier | Nm | 53 |
ENGINE LUBRICATION SYSTEM
| Number | Designation | Engine 642 without particulate filter | ||
|---|---|---|---|---|
| BF18.00-P-1001-01A | Engine oil | Filling capacity (oil and filter change) |
Liters | 8.5 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0228-03A | ||
| Sheet | BB00.40-P-0228-05A | |||
| Sheet | BB00.40-P-0228-51A | |||
| Sheet | BB00.40-P-0229-03A | |||
| Sheet | BB00.40-P-0229-31A | |||
| Sheet | BB00.40-P-0229-05A | |||
| Sheet | BB00.40-P-0229-51A | |||
ENGINE LUBRICATION SYSTEM
| Number | Designation | Engine 642 with particulate filter | ||
|---|---|---|---|---|
| BF18.00-P-1001-01S | Engine oil | Filling capacity (oil and filter change) |
Liters | 8.5 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0228-51A | ||
| Sheet | BB00.40-P-0229-31A | |||
| Sheet | BB00.40-P-0229-51A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Loctite sealant 5970 | A 003 989 98 20 |
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 899268-0 Fax + 49 899101978 www.Loctite.de |
| BR00.45-Z-1046-04A | Cleaning spray, Loctite 7063 (150ml) | A 001 986 71 71 10 |
