Remove/install lower crankcase section at removed engine - AR01.40-P-3200AMG (ML63 AMG): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

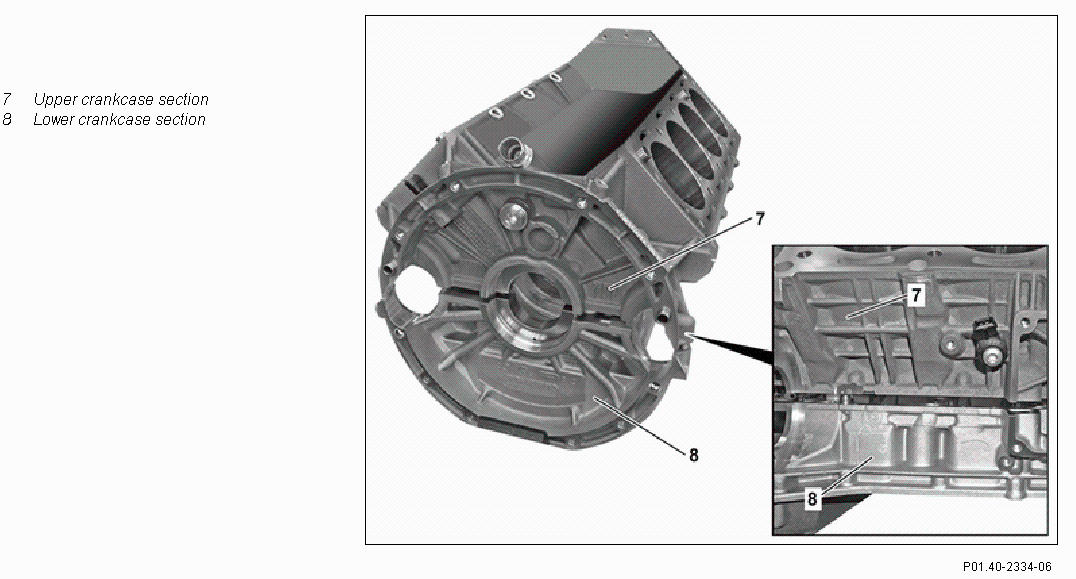

Fig 1: Identifying Crankcase Upper/Lower Sections

Courtesy of MERCEDES-BENZ USA

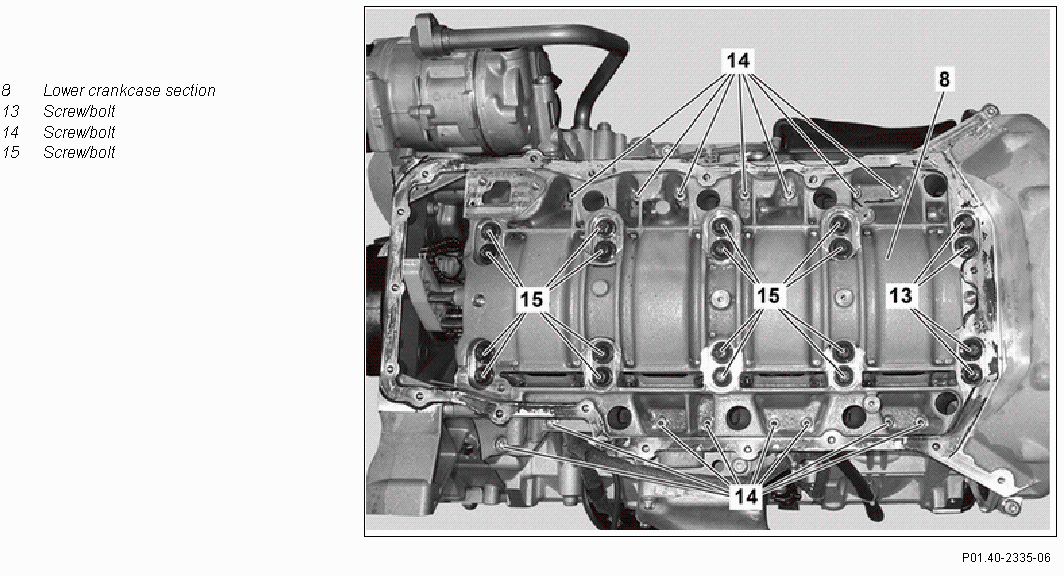

Fig 2: Identifying Crankcase Lower Section And Screws/Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Secure engine to assembly stand
2	Remove spark plugs		AR15.12-P-1010GZS
3	Remove oil pan bottom section		AR01.45-P-7555GZS
4	Remove oil pan		AR01.45-P-7500GZS
5	Remove oil pump		AR18.10-P-6020GZS
6	Detach A/C compressor from crankcase		AR83.55-P-5300GZ
7	Detach engine support from crankcase		*BA22.10-P-1001-02A
8	Remove vacuum reservoir	For vehicles with vacuum reservoir at the crankcase
9	Remove rear radial shaft sealing ring	AR03.20-P-3063GZS
		Installation: Replace rear radial shaft sealing ring.
10	Unfasten screw/bolts (13, 14, 15) counter to the tightening procedure and remove		AR03.20-P-4351-05AMG
		Installation: Replace screw/bolts (13, 14, 15) and tighten according to tightening procedure.
	Bolt for crankshaft bearing cap (lower section of cylinder crankcase/main bearing threaded connection)		*BA03.20-P-1001-01J
		Cylinder crankcase lower part to cylinder crankcase upper part	*BA03.20-P-1002-01J
11	Pry off lower crankcase section (8) (bed plate) and take off
	Notes on sealant path for timing case cover		AH01.40-P-1000-01AMG
	Information on application of sealant to crankcase bottom section		AH01.40-P-1000-03AMG
		Do not hammer in any pry off tool between upper crankcase section (7) and lower crankcase section (8) (bed plate). The sealing surfaces can be damaged otherwise.
		Installation: Sealing surfaces must be absolutely oil and grease free before application of the sealant. Leaks can occur otherwise.
		Installation: Apply sealant to upper crankcase section (7) and timing case cover.
	Loctite 5970 sealant		*BR00.45-Z-1013-01A
		Application gun	Fig 3
12	Remove sealant on timing case cover, upper crankcase section (7) and lower crankcase section (8) (bed plate)		AR01.00-P-0050-01A
		Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.
	Loctite 7200		*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
13	Install in the reverse order

CRANKSHAFT BEARING CAP

Number	Designation				Engine 156
BA03.20-P-1001-01J	Bolt to crankshaft bearing cap (lower section of cylinder crankcase/main bearing threaded connection)	M9	Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage 7 Stage 8 Stage 9	Nm Nm ∠° ∠° Nm Nm ∠° ∠°	20 32 90 90 release 20 32 90 90
		M9		Nm Nm ∠° ∠° Nm Nm ∠° ∠°	20 32 90 90 release 20 32 90 90
		M10	Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage 7 Stage 8 Stage 9	Nm Nm ∠° ∠° Nm Nm ∠° ∠°	20 40 90 90 release 20 40 90 90

CRANKSHAFT BEARING CAP

Number	Designation				Engine 156
BA03.20-P-1002-01J	Cylinder crankcase lower part to cylinder crankcase upper part	M6	Stage 1 Stage 2	Nm ∠°	4 90
		M6	Stage 1 Stage 2	Nm ∠°	4 90
	M8		Stage 1 Stage 2	Nm ∠°	10 90

CAMSHAFT

Number	Designation			Engine 156
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 2	∠ °	90

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite sealant 5970	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 899268-0 Fax +49 899101978 www.Loctite.de
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150 ml)	A 001 986 71 71 10
