Tightening pattern for crankcase bottom section - AR03.20-P-4351-05AMG
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
CRANKSHAFT BEARING CAP
| Number | Designation | Engine 156 | |||
|---|---|---|---|---|---|
| BA03.20-P-1001-01J | Crankshaft bearing cap bolt (underpart of crankcase/ main bearing threaded connection) | M9 | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 32 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 5 | |||
| Stage 5 | ∠° | 90 | |||
| Stage 6 | ∠° | 5 | |||
| M10 | Stage 1 | Nm | 20 | ||
| Stage 2 | Nm | 40 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 5 | |||
| Stage 5 | ∠° | 90 | |||
| Stage 6 | ∠° | 5 | |||
- Lubricate bolts for bearing cap at thread and bolt head contact surfaces.
- Tighten bolts for bearing cap in the specified sequence.
If no torquing angle wrench is available for the final tightening, the bearing cap bolts can be torqued further by the specified angle in a single operation using a wrench and locking handle. Do not use a flexi-rod torque wrench for tightening in order to avoid any angle errors.

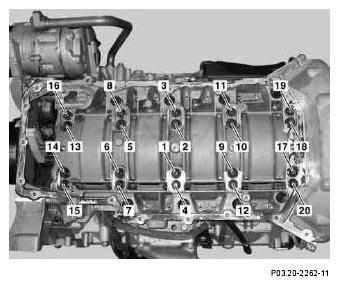

Tightening pattern for lower crankcase section
