Remove/install bottom part of oil pan - AR01.45-P-7555GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

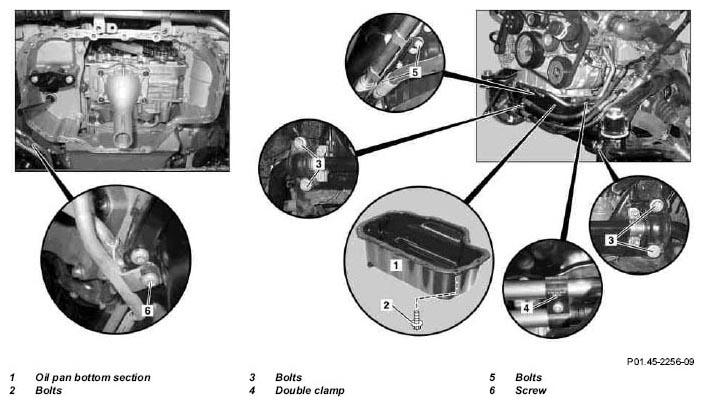

Fig 1: Identifying Bottom Part Of Oil Pan Remove/Install Components - Engine 156
G05257284Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

4.4.06 Engine oil, Specifications for Operating Fluids   *BF18.00-P-1001-01V
11.7.06 Bolt, stabilizer bar retaining clamp to bearing bracket   *BA32.20-P-1001-02L
6.9.06 Bolt, stabilizer bar retaining clamp to front axle carrier   *BA32.20-P-1001-02N
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Open engine hood Model 164 AR88.40-P-1000GZ
    Model 251 AR88.40-P-1000RT
2 Remove partition wall between wheelhouses IMPORTANT Only model 251 AR62.30-P-2400RT
3 Remove air filter housing NOTES Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off. AR09.10-P-1150GZS
4 Mount engine hoist Model 164 AR33.10-P-0100-01GZ
    Model 251 AR33.10-P-0100-01RT
    COMMERCIALLY AVAILABLE TOOLS Engine supporting frame basic frame side piece (M/S-class)
refer to GOTIS
http://gotis.aftersales.daimlerchrysler.com
Model 251: ↓
COMMERCIALLY AVAILABLE TOOLS Engine lifting device side adapter for model 251
refer to GOTIS
http://gotis.aftersales.daimlerchrysler.com
5 Raise vehicle with lifting platform   AR00.60-P-1000GZ
6 Remove bottom engine compartment paneling IMPORTANT Only install engine cover after inspecting for leaks.
    Model 164 AR61.20-P-1105GZ
    Model 251 AR61.20-P-1105RT
7 Drain engine oil, collect if necessary TORQUE SPECIFICATION *BA01.45-P-1001-01R
    FLUID SPECIFICATION *BF18.00-P-1001-01V
8 Remove bolts from engine mount at front axle carrier
    TORQUE SPECIFICATION Model 164 *BA22.10-P-1001-03G
    TORQUE SPECIFICATION Model 251 *BA22.10-P-1001-03F
9 Unscrew bolts (3) at stabilizer bar IMPORTANT Do not remove stabilizer bar completely but just hang it up below.
    TORQUE SPECIFICATION Model 164 *BA32.20-P-1001-02L
    TORQUE SPECIFICATION Model 251 *BA32.20-P-1001-02N
10 Loosen double clamp (4) and remove
11 Remove bolts (5) from power steering pressure line bracket at engine oil pan and hang up pressure line to the side TORQUE SPECIFICATION *BA46.30-P-1008-01O
12 Remove bolt (6) on automatic transmission oil lines holder TORQUE SPECIFICATION *BA01.45-P-1005-01R
13 Raise engine at front lifting eye IMPORTANT Ensure that engine and its detachable components are not lying against the body!
Do not over-tension coolant lines and electric cables!
14 Remove bolts (2) on oil pan bottom section (1), remove oil pan bottom section (1) IMPORTANT Do not damage the sealing surfaces when removing!
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01GZ
    IMPORTANTInstallation:  Clean sealing surfaces; apply sealant to the sealing surfaces with a bead of 2.0 mm (± 0.5 mm)! The sealant must be applied within 10 minutes! The silicone bead must not be spread!
    TORQUE SPECIFICATION *BA01.45-P-1003-01R
    Sealant *BR00.45-Z-1013-01A
15 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
16 Conduct engine test run and check the engine for leaks
FRONT AXLE STABILIZER BAR

Number Designation Model 164.1/8
BA32.20-P-1001-02L Bolt, stabilizer bar retaining clamp to bearing bracket Nm 180
FRONT AXLE STABILIZER BAR

Number Designation Model 251
BA32.20-P-1001-02N Bolt, stabilizer bar retaining clamp to front axle carrier Nm 180
POWER STEERING PUMP

Number Designation Engine 156 in model 164, 209, 211, 219, 251
BA46.30-P-1008-01O Bolt, power steering pressure line bracket to engine oil pan Nm 10
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 164
BA22.10-P-1001-03G Bolt, front engine mount to front axle carrier Nm 53
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 251
BA22.10-P-1001-03F Bolt, front engine mount to front axle carrier Nm 53
OIL PAN

Number Designation Engine 156
BA01.45-P-1001-01R Oil drain screw to oil pan Nm 30
BA01.45-P-1003-01R Bolt, oil pan bottom section to oil pan M6 Nm 8, 4
BA01.45-P-1005-01R Bracket, oil lines to oil pan M6 Nm 5
ENGINE LUBRICATION SYSTEM

Number Designation Engine 156 in model 164 Engine 156 in model 251
BF18.00-P-1001-01V Engine oil Filling capacity (oil and filter change) Liters 9.7 9.6
Specifications for Operating Fluids Sheet BB00.40-P-0229-05A BB00.40-P-0229-05A
AUXILIARY REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Sealant A 003 989 98 20
