Notes on application of sealant to timing case cover - AH01.40-P-1000-01AMG
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

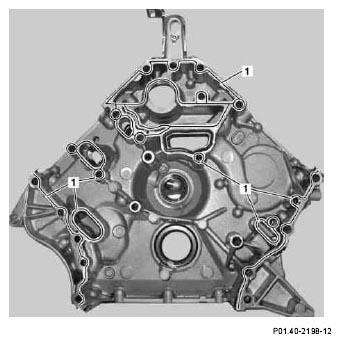

The lines (1) identify the application of the sealant.
The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and to a height and width of 1.5 mm (± 0.5 mm). The sealant must be applied within 10 min. The sealant bead must not be spread. Use only sealant listed in the Repair Products.
