Remove/install valve springs and/or valve stem seals - AR05.30-P-3500GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

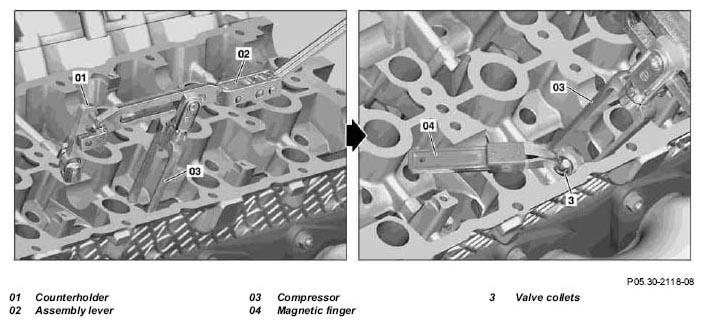

Fig 1: Identifying Valve Springs And Valve Stem Seals Components
G05257448Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

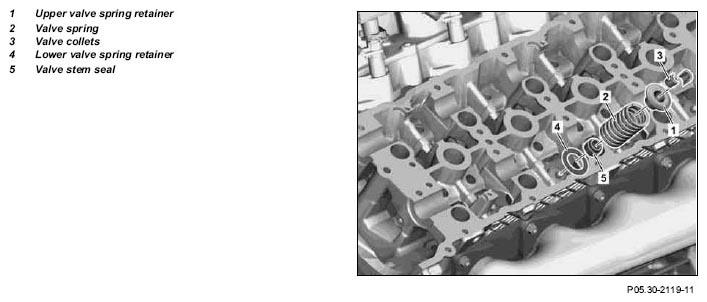

Fig 2: Identifying Upper Valve Spring Retainer, Valve Spring, Valve Collects, Lower Valve Spring Retainer And Valve Stem Seal
G05257449Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

21.2.06 SPECIAL TOOL 273 589 00 61 00 Replace depressor
SPECIAL TOOL 272 589 00 61 00 Depressor		 Step 11
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being pinched  or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
1 Remove cylinder head covers Right cylinder head cover AR01.20-P-5012GZA
    Left cylinder head cover AR01.20-P-5013GZA
2 Remove camshafts   AR05.20-P-6992GZA
3 Remove hydraulic valve clearance compensation elements   AR05.00-P-2011GZA
4 Remove spark plugs TORQUE SPECIFICATION *BA15.10-P-1001-01C
5 Crank engine at crankshaft in direction of rotation until piston of cylinder to be machined is positioned at TDC IMPORTANT Crank crankshaft at center bolt, belt pulley, at the same time hold up timing chain, so that it does not jam when cranking.
IMPORTANTInstallation:  Before installing camshafts turn engine again at crankshaft in direction of engine rotation in starting position to a 40° crank angle after ignition TDC.
    SPECIAL TOOL Fig 9
6 Connect cylinder leakage testing unit   AR01.00-P-1300-01VA
    SPECIAL TOOL Fig 10
7 Pressurize compression chamber to about 5 bar IMPORTANT If the crankshaft turns, the retaining lock for crankshaft/starter ring gear must be installed: ↓
    Install retaining lock for crankshaft / starter ring gear. AR03.30-P-5000GZA
8 Mount counterholder (01) on cylinder head SPECIAL TOOL Fig 3
9 Mount assembly lever (02) with depressor (03) on counterholder (01) and align IMPORTANT Place depressor (03) on upper valve spring retainer (1) vertically.
    SPECIAL TOOL Fig 3
    SPECIAL TOOL Fig 4
10 Remove upper valve spring retainer (1) and valve spring (2) NOTES When pressing together valve spring (2) ensure that depressor (03) does not slip, otherwise surface of valve stem can be damaged.
NOTES Do not allow valves to touch piston crowns otherwise they will be damaged.
IMPORTANT Compress valve spring (2). Remove split valve spring retainer locks (3) with magnetic finger (04), magnet pit or tweezers.
    SPECIAL TOOL Fig 5
    SPECIAL TOOL Fig 6
11 Remove lower valve spring retainer (4)
12 Replace valve stem seal (5) IMPORTANT Check surface of valve stem for roughness and formation of ridging (visual inspection or with nail).
Replace valves with a rough stem surface or formation of ridging: ↓		 AR05.30-P-3500-02VA
    Remove/install valves. AR05.30-P-3511SX
    SPECIAL TOOL Fig 7
    SPECIAL TOOL Fig 8
INSPECT Checking
13 Check upper valve spring retainer (1) and lower valve spring retainer (4) for pitting, replace if necessary
14 Perform machining of other cylinders in the same way IMPORTANT If retaining lock for crankshaft/starter ring gear was installed then it must be removed before any further turning of engine.
15 Install in the reverse order
16 Using dipstick, check engine oil level approx. 5 minutes after switching off warm engine; adjust to correct level if so required NOTES The vehicle must be positioned horizontally on the wheels, otherwise false measurements occur.
IMPORTANT Insert dipstick fully in dipstick guide tube and leave for at least 3 s.
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
17 Carry out an engine test run and check the engine for leaks
18 Inspect cooling system for leaks   AR20.00-P-1010GZC
SPARK PLUGS

Number Designation Engine 272 Engine 273
BA15.10-P-1001-01C Spark plug on cylinder head Nm 23 23
Fig 3: Identifying Case For Valve Installation Tools (111 589 25 61 00)
G05257450Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Compressor (273 589 00 61 00)
G05257451Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Magnetic Finger (116 589 06 63 00)
G05257452Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Magnetic Pin (210 589 00 40 00)
G05257453Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Pliers (606 589 00 37 00)
G05257454Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Drift (604 589 00 43 00)
G05257455Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Wrench Socket (001 589 65 09 00)
G05257456Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 10: Identifying Threaded Adapter (272 589 00 91 00)
G05257457Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
