Replace valve stem seals - AR05.30-P-3500-02VA

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Pliers (606 589 00 37 00)
G04731967Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Drift (604 589 00 43 00)
G04731968Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Use pliers (01) SPECIAL TOOL to pull off valve stem seals (1)
  2. Check surface of valve stems for roughness and formation of burrs (visual inspection or with a nail).

    IMPORTANT Replace valves with a rough stem surface or formation of burrs.

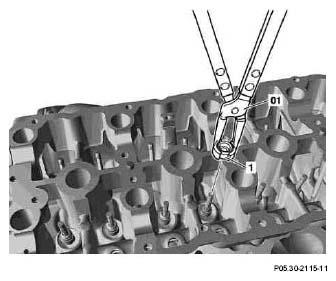

    Fig 3: Pulling Off Valve Stem Seals Using Pliers
    G04731969Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Fit protective sleeve (02) onto valve stem.
  4. Oil valve stem seals (1).
  5. Press on the valve stem seals (1) with SPECIAL TOOL a drift (03).
  6. Pull protective sleeve (02) off the valve stem.

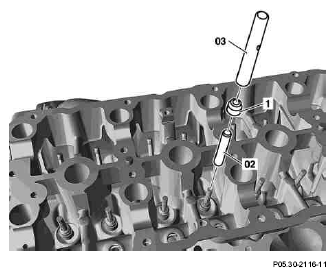

    Fig 4: Pressing On Valve Stem Seals With Drift
    G04731970Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
