Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 164, 251 with TRANSMISSION 722.9

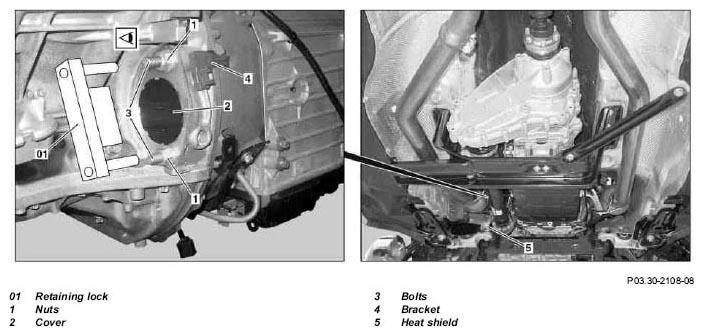

Fig 1: Identifying Retaining Lock For Crankshaft And Ring Gear Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Remove left catalytic converter		AR49.10-P-7100GZA
2	Remove heat shield (5) of the propeller shaft at the front axle transmission
3	Remove bolts (3) on the transmission bell	Counterhold nuts (1) from the rear.
			*BA27.40-P-1001-01E
4	Unclip cover on "Starter opening on the left"
	Checking
5	Check splines of ring gear for drive plate	Check toothing for wear and damage, by continuing to rotate engine at center bolt on crankshaft in direction of rotation of engine. If necessary:↓
		Replace drive plate.	AR03.30-P-8001GZA
			Fig 2
6	Insert retaining lock (01) in opening	Push the retaining lock (01) into the opening and let it latch in the ring gear. If required, continue turning engine at center bolt on the crankshaft in direction of rotation of the engine.
			Figure
7	Install in the reverse order

HOUSING

Number	Designation			Transmission 722.9
BA27.40-P-1001-01E	Bolt, automatic transmission to crankcase	M10 X 40	Nm	38
BA27.40-P-1001-01E	Bolt, automatic transmission to crankcase	M10 X 90	Nm	38

Fig 2: Identifying Wrench Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
