Connect cylinder leakage testing unit - AR01.00-P-1300-01VA

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Threaded Adapter (272 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Calibrate cylinder leakage tester (04).
Cylinder leakage tester, see GOTIS:http://gotis.aftersales.daimlerchrysler.com

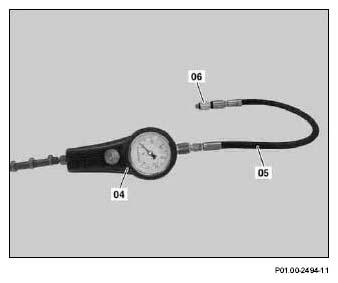

Screw threaded adapter (06) to high-pressure testing hose (05).

Fig 2: Identifying Cylinder Leakage Tester, Threaded Adapter & High-Pressure Testing Hose
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Turn threaded adapter (06) with high-pressure testing hose (05) in tapped bore for spark plug.
Mount high-pressure testing hose (05) on cylinder leakage tester (04).

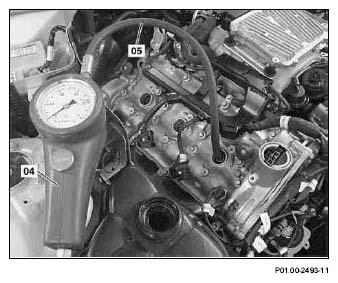

Shown on engine 272.963

Fig 3: Identifying High-Pressure Testing Hose & Cylinder Leakage Tester - Shown On Engine 272.963

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
