Remove/install headliner - AR68.30-P-4300Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3

Shown with code 414 Electric glass tilting/sliding roof

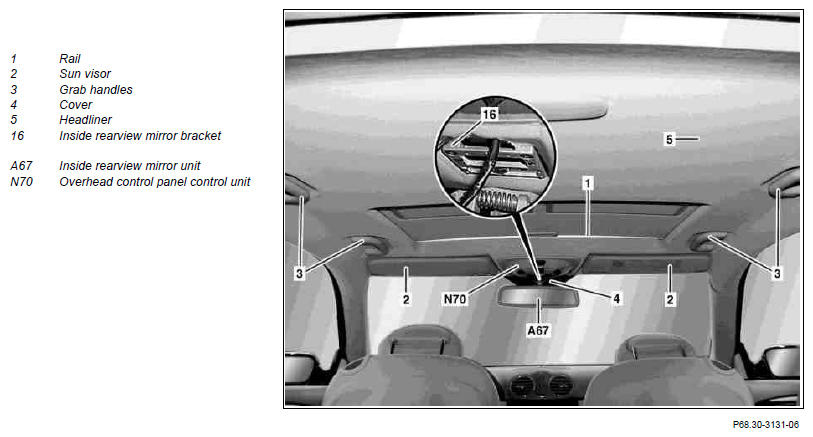

Fig 1: Identifying Headliner Components (With Code 414 Electric Glass Tilting/Sliding Roof)
G07718865Courtesy of MERCEDES-BENZ USA

Shown on right side vehicle with code 273 D-net cell phone preinstallation

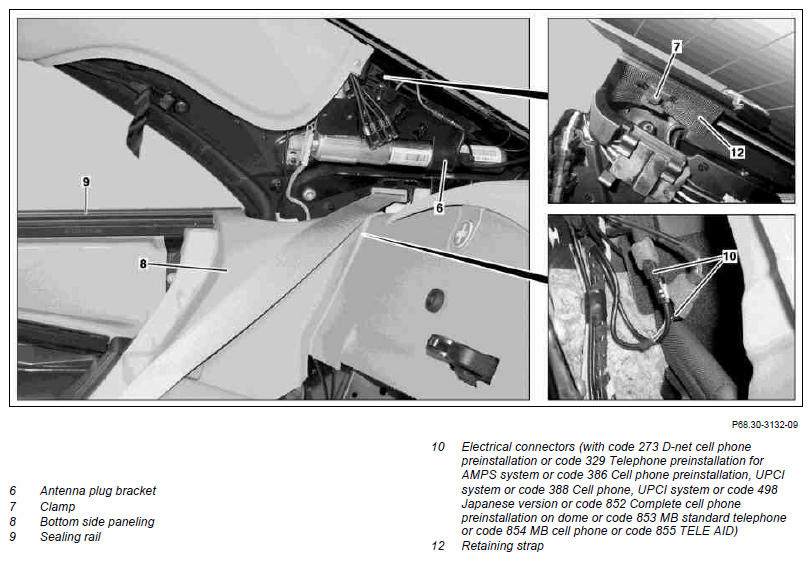

Fig 2: Identifying Antenna Plug Bracket, Bottom Side Paneling, Sealing Rail, Electrical Connectors And Retaining Clip (With Code 273)
G07718866Courtesy of MERCEDES-BENZ USA

Shown with code 414 Electric glass tilting/sliding roof, code 220 Parktronic system (PTS), code 882 Interior monitoring (with ATA only), code 273 D-net cell phone preinstallation and code 855 TELE AID

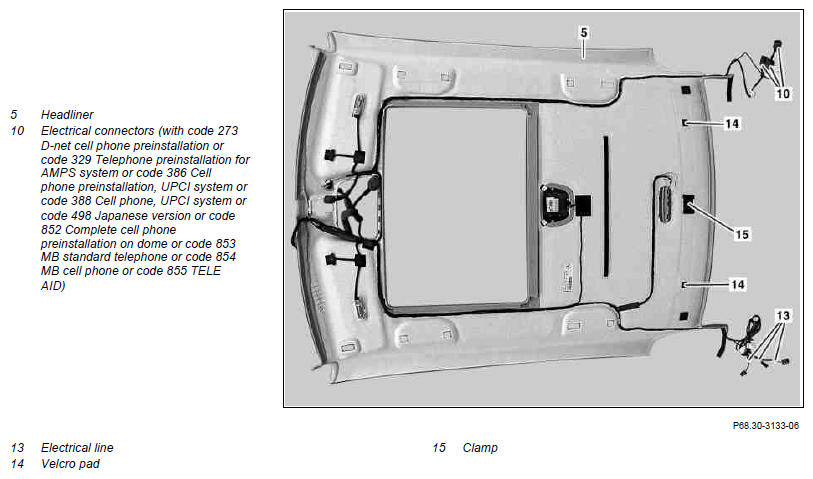

Fig 3: Identifying Headliner Components (With Code 414 Electric Glass Tilting/Sliding Roof)
G07718867Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

29.5.06 "Disconnect/connect battery ground line" removed
REMOVINGINSTALLING Remove/install
NOTES Note on function reliability of windowbag   AH91.60-P-0693-01A
1 Move left and right front seats toward front
2 Move left and right front seat backrest toward front Vehicle without code P98 Black Series and without code 494 USA version
3 Completely move side window in drive and passenger door downward
4 Completely move left and right side window in rear downward
5 Open tilting/sliding roof Vehicles with code 414 Electric glass tilting/sliding roof
6 Remove strip (1) Vehicles with code 414 Electric glass tilting/ sliding roof
7 Remove paneling on left and right A-pillars   AR68.30-P-4050Q
8 Remove left and right sun visor (2).
9 Remove counter bearing on left and right sun visor (2)
10 Remove all handles (3)   AR68.30-P-4330P
11 Remove overhead control panel control unit (N70) Vehicles without code P98 Black Series AR82.20-P-1000Q
12 Remove inside rearview mirror unit (A67)   AR68.40-P-0001Q
13 Remove inside rearview mirror bracket (16)
14 Remove cover (4) and disconnect electrical connector from rain/light sensor
15 Remove paneling from left and right C-pillar   AR68.30-P-4490Q
16 Unclip antenna plug bracket (6) from left and right windowbag gas generator
17 Remove clip (7) from left and right C-pillar
18 Unhook retaining strap (12) from left and right C-pillar
19 Remove top section from left and right side paneling in rear   AR68.30-P-4780Q
20.1 Fold back both rear seat backrests Vehicles without code P98 Black Series
20.2 Remove paneling in rear Vehicles with code P98 Black Series AR68.30-P-4782QBS
21 Unhook right bottom side paneling (8) from sealing rail (9) and move out at side below rear shelf until electrical connectors (10) are accessible. On vehicles with code 273 D-net cell phone preinstallation or
code 329 Telephone preinstallation, AMPS system or
code 386 Cell phone preinstallation, UHI system or
code 388 Cell phone, UHI system or
code 498 Japan version or
code 852 Complete cell phone preinstallation on dome or
code 853 MB standard telephone or
code 854 MB cell phone or
code 855 TELE AID
IMPORTANT Number of electrical connectors (10) according to equipment.

22 Separate electrical connectors (10) On vehicles with code 273 D-net cell phone preinstallation or
code 329 Telephone preinstallation, AMPS system or
code 386 Cell phone preinstallation, UHI system or
code 388 Cell phone, UHI system or
code 498 Japan version or
code 852 Complete cell phone preinstallation on dome or
code 853 MB standard telephone or
code 854 MB cell phone or
code 855 TELE AID
IMPORTANT Number of electrical connectors (10) according to equipment.

23 Unhook left bottom side paneling (8) from sealing rail (9) and move out at side below rear shelf until electrical lines (13) are accessible.
24 Expose electrical lines (13) toward rear into trunk to rear SAM control module with fuse and relay module. IMPORTANTInstallation:  Replace damaged fasteners.
25 Disconnect electrical lines (13) from rear SAM control module with fuse and relay module.   AR54.21-P-1259Q
26 Lay electrical lines (13) toward front into vehicle interior.
27 Loosen headliner (5) in rear area of Velcro pads (14) from roof paneling, slightly slide toward front and unhook from clip (15) and then remove headliner (5) from vehicle at side IMPORTANT Aid of helper required.
28 Prepare headliner (5) for installation When replacing headliner (5). AR68.30-P-4305Q
29 Install in the reverse order
