Prepare headliner for installation - AR68.30-P-4305Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3

Shown on model 209.3 with code (414a) electric tilting/sliding roof in glass version and code (220a) Parktronic system (PTS) and code (882b) interior monitoring (only with ATA)

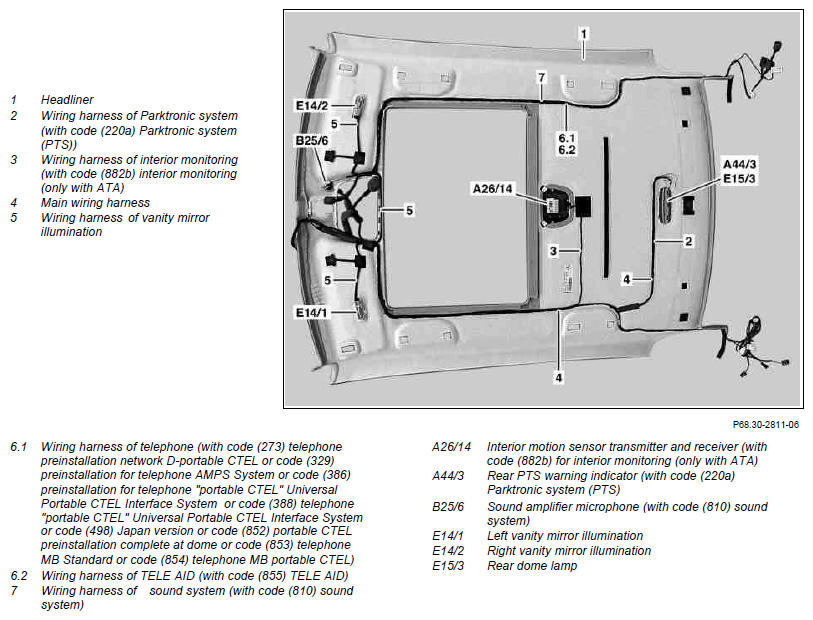

Fig 1: Identifying Headliner Components

Courtesy of MERCEDES-BENZ USA

	Preparation
1	Install main wiring harness (4)		AR54.18-P-0020Q
2.1	Prepare headliner (1) for installing impact absorber	On vehicles with code (494a) USA version	AR68.30-P-4300-11Q
		Adhesives	*BR00.45-Z-1072-02A
3.1	Install Rear PTS warning indicator (A44/3) in headliner (1)	On vehicles with code (220a) Parktronic system equipment (PTS) The installation measurement includes the wiring harness of the Parktronic system (2) and the Rear PTS warning indicator (A44/3).	AR68.30-P-4300-04Q
		Tesaband 4657	*BR00.45-Z-1071-02A
4.1	Install interior motion sensor transmitter and receiver (A26/14) in headliner (1)	On vehicles with code (882b) interior monitoring (only with ATA) The installation measurement includes the wiring harness of the interior monitoring (3) and the interior motion sensor transmitter and receiver (A26/14). Use body saw with hacksaw blade. Body saw (electric/pneumatic) http://gotis.aftersales.mercedes-benz.com	AR68.30-P-4300-05Q
		Tesaband 4657	*BR00.45-Z-1071-02A
5.1	Prepare headliner (1) for installation of the sound system	On vehicles with code (810) Sound system The installation measurement includes the wiring harness of the sound system (7) and the sound amplifier microphone (B25/6).	AR68.30-P-4300-06Q
		Tesaband 4657	*BR00.45-Z-1071-02A
6.1	Glue on wiring harness of telephone (6.1) onto headliner (1)	On vehicles with code (273) telephone preinstallation network D-portable CTEL or code (329) preinstallation for telephone AMPS System or code (386) preinstallation for telephone "portable CTEL" Universal Portable CTEL Interface System or code (388) telephone "portable CTEL" Universal Portable CTEL Interface System or code (498) Japan version or code (852) portable CTEL preinstallation complete at dome or code (853) telephone MB Standard or code (854) telephone MB portable CTEL	AR68.30-P-4300-10Q
		Tesaband 4657	*BR00.45-Z-1071-02A
7.1	Glue wiring harness of TELE AID (6.2) onto headliner (1)	On vehicles with code (855) TELE AID	AR68.30-P-4300-08Q
		Tesaband 4657	*BR00.45-Z-1071-02A
8	Install headliner (1)		AR68.30-P-4300Q

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1072-02A	2-component adhesive/Devcon 5 Min. Epoxy	A 005 989 09 71
BR00.45-Z-1071-02A	Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm	A 001 989 17 85
