Remove/install overhead control panel control unit - AR82.20-P-1000Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3
MODIFICATION NOTES
| 17.10.05 | Disconnect ground line of battery, removed | Step 2 |
| Remove/install | |||
| 1.1 | Transfer basic data from overhead control panel control unit (N70) to STAR DIAGNOSIS | When installing new overhead control panel control unit (N70). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove transmitter key from electronic ignition switch control unit | ||

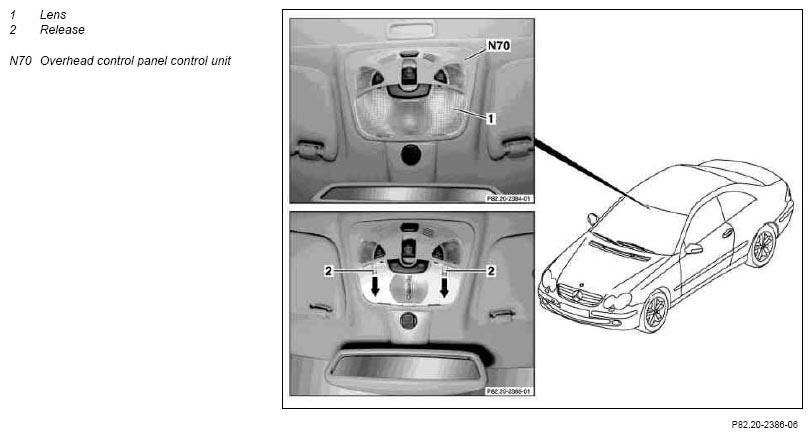

| 3 | Pry off lens (1) from overhead control panel control unit (N70) | ||
| Fig 2 | |||
| 4 | Press overhead control panel control unit (N70) release (2) | ||
| 5 | Remove the overhead control panel control unit (N70) | ||
| 6 | Disconnect connectors from overhead control panel control unit (N70) | ||
| 7 | Install in the reverse order | ||
| 8.1 | Normalize tilting/sliding roof | ||
| 9 | Read fault memory, erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
