Remove/install SAM control unit with fuse and relay box in rear - AR54.21-P-1259Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.3
MODIFICATION NOTES
| 12.4.05 | Stage basic data in STAR DIAGNOSIS, added and disconnect battery ground line, taken away | Steps 1 to 8 |
| Remove/Install | |||
| 1.1 | Connect STAR DIAGNOSIS and stage basic data from rear SAM control unit with fuse and relay module (N10/2) in STAR DIAGNOSIS | Only when installing new the rear SAM control unit with fuse and relay module (N10/2). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove left paneling in trunk | See ↓ | |
| Remove paneling in trunk | AR68.30-P-4600PB | ||

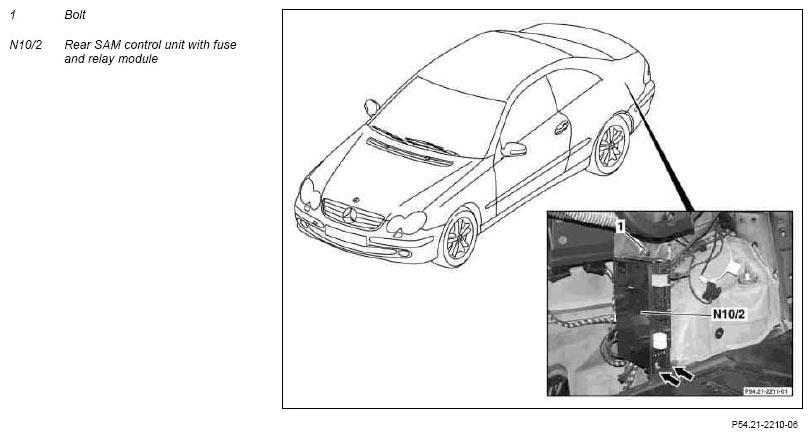

| 3 | Unscrew bolt (1) | ||
| 4 | Unlock rear SAM control unit with fuse and relay module (N10/2) and take out until the electrical connectors are accessible | ||
| 5 | Unlock and separate electrical connectors from rear SAM control unit with fuse and relay module (N10/2) | see: ↓ |
|
| Disconnecting cables from control units and fuse and relay boxes see: ↓ |
AR54.18-P-1261-01P | ||
| Connecting cables to control units and fuse and relay boxes | AR54.18-P-1261-02P | ||
| 6 | Remove rear SAM control unit with fuse and relay module (N10/2) | ||
| 7.1 | Check fuse and relay assignment at rear SAM control unit with fuse and relay module (N10/2) | Only when installing new the rear SAM control unit with fuse and relay module (N10/2). | |
| Fuse assignment of fuse and relay box in trunk | GF54.15-P-1256-01Q | ||
| Relay assignment of fuse and relay box in trunk | GF54.15-P-1257-01P | ||
| 8 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
