Remove/install handle on roof - AR68.30-P-4330P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODELS 203, 209.3

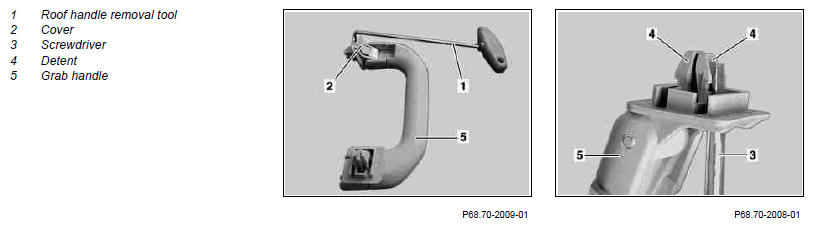

Fig 1: Identifying Roof Handle Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Pull out cover (2)	Use remover for roof grab handle.
	Roof handle removal tool		WF58.50-P-6870-03A
2	Press in catch (4)	Press in catch (4) with screwdriver (3).
3	Remove handle (5)
4	Install in the reverse order
