Remove/install inside rearview mirror - AR68.40-P-0001Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3

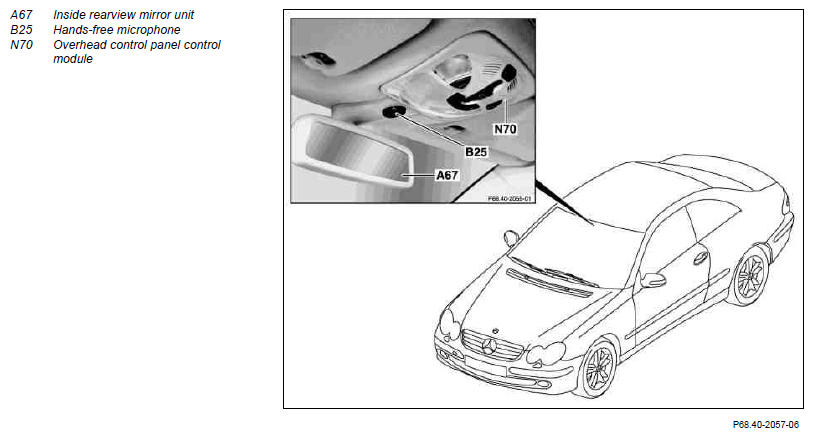

Fig 1: Identifying Inside Rearview Mirror Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove overhead control panel control module (N70)	Detach only coupling from inside rearview mirror unit (A67).	AR82.20-P-1000Q
2	Pull down inside rearview mirror unit (A67) on one side	Inside rearview mirror unit (A67) is mounted with spring tension.
3	Remove hands-free system microphone (B25)	With code (853) MB standard telephone With code (854) MB portable cellular telephone With code (855) TELE AID	AR82.70-P-8969Q
4	Remove inside rearview mirror unit (A67)
5	Install in the reverse order
