Replace longitudinal member front section - AR62.20-P-1260P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0/2/7, 209.3/4

Illustrated on Model 203.0

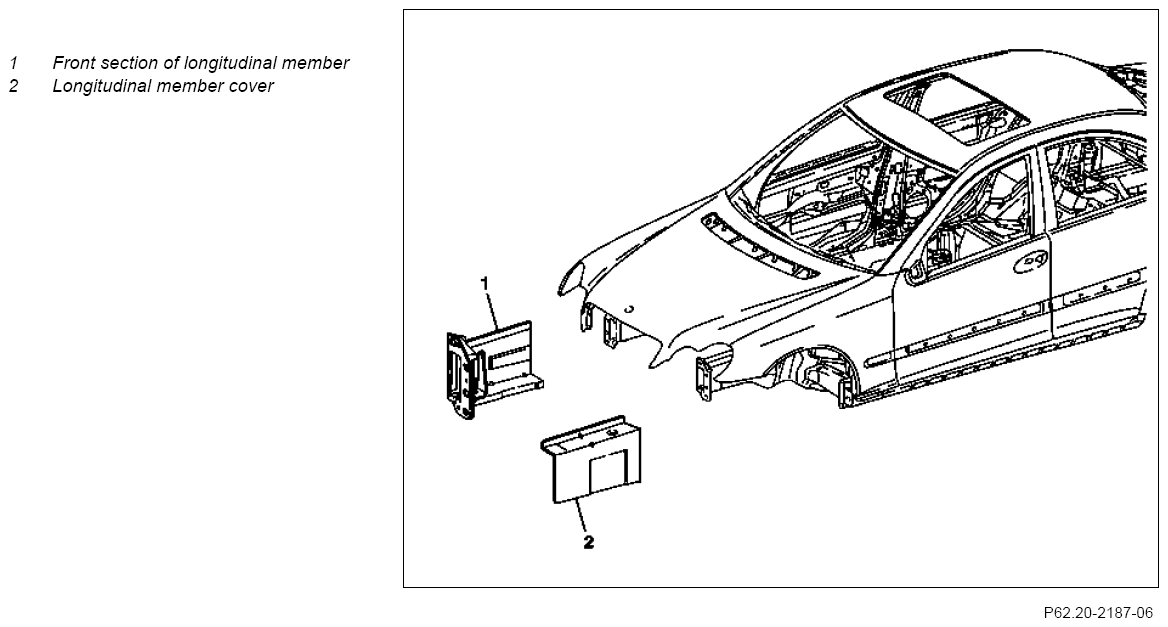

Fig 1: Identifying Front Section Of Longitudinal Member And Longitudinal Member Cover
G07753478Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES Measures for preventing damage to vehicles or components when performing electric welding work   AH00.00-N-0005-01A
NOTES General information on repairs to body   AH60.00-N-0001-01A
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining vehicle with fireproof tarpaulin
3 Prepare required workshop equipment and commercially available tools for repair IMPORTANT Workshop equipment and commercially available tools, see GOTIS
http://gotis.aftersales.mercedes-benz.com

4 Equip straightening bench with module members, cross members and straightening bracket set. IMPORTANT Observe body plans provided. See GOTIS http://gotis.aftersales.mercedes-benz.com  Celette straightening bench 7203.300 (for model 203)
Celette straightening bracket set 7203.309 (for model 203), as supplement to 7203.300
Celette straightening set 7209.309 (for model A 209), as supplement to 7203.300 (model 203), as well as 7203.310 (model C 209)
Celette straightening set 7203.310 (for model 203), only for new orders, includes supplement 7203.309
Celette 7203.308 supplementary straightening set for Celette straightening bracket set 7203.310 (for model 203 4MATIC)
Celette 7209.308 supplementary straightening set for Celette straightening bracket set 7203.310 (for model C 209 AMG Black Series)
Car-bench straightening set 82434 (for model 203)
Car-Bench 82445 supplementary straightening set for Car-Bench straightening bracket set 82434 (for model 203 4MATIC)

5 Lift vehicle with two-post lifting platform
6 Fasten vehicle to straightening bench
7 Separate longitudinal member front section (1)   AR62.20-P-1260-01P
    SPECIAL TOOL Spot weld milling cutter Figure
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
8 Prepare longitudinal member front section (1)   AR62.20-P-1260-05P
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
9 Install and weld in longitudinal member front section (1)   AR62.20-P-1260-07P
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
10 Weld in longitudinal member cover (2)   AR62.20-P-1260-04P
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
11 Unfasten vehicle from straightening bench
12 Lift vehicle with two-post lifting platform
13 Remove straightening bench.
14 Clean repair areas
15 Prime area to be repaired using primer filler
16 Carry out seam sealing after repairs Model 203 AR97.10-P-4000P
    Model 209 AR97.10-P-4000Q
    IMPORTANT Supplement standard seals with MB body sealant.
Sealant
*BR00.45-Z-1003-01A
17 Paint repair areas and adjacent surfaces
NOTES Notes on paintwork repairs   AH98.00-P-9408-02A
18 Perform cavity preservation after repair work Model 203.0 AR97.20-P-1500P
    Model 203.2 AR97.20-P-1500PA
    Model 203.7 AR97.20-P-1500PB
    Model 209.3 AR97.20-P-1500Q
    Model 209.4 AR97.20-P-1500QA
19 Install all removed detachable body components
Fig 2: Identifying Spot Weld Milling Cutter
G07753479Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A Sealant, white, 310 ml, DB supply specification 6069.20 A 001 989 63 20
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
