Separate longitudinal member front section - AR62.20-P-1260-01P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

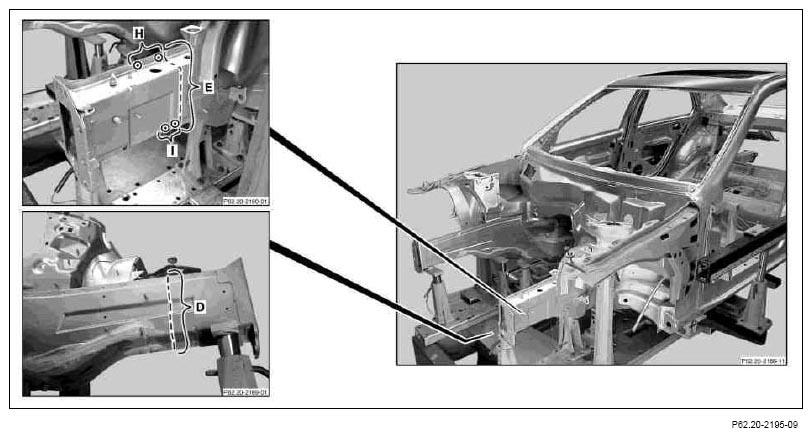

Fig 1: Identifying Spot Welds & Separation Points Of Longitudinal Member Front Section

Courtesy of MERCEDES-BENZ USA

Work procedure shown on model 203.0.

Mark separation points on longitudinal member (areas D and E).
Cut separation points with body saw (areas D and E).
Expose spot welds (areas H and I).
Cut out spot welds with spot weld milling cutter (areas H and I).
Remove longitudinal member front section

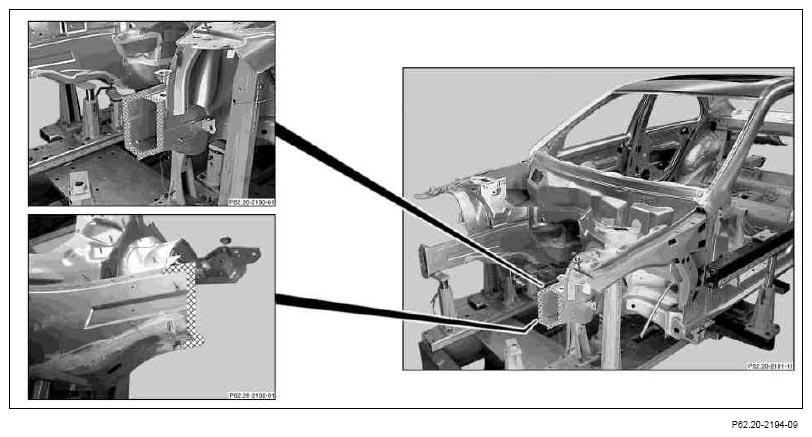

Fig 2: Identifying Mating Surfaces Of Longitudinal Member Front Section
Courtesy of MERCEDES-BENZ USA
Grind mating surfaces down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
Remove shavings using wet/dry vacuum cleaner.
Coat insides of spot weld flanges with zinc dust paint.
