Prepare longitudinal member front section - AR62.20-P-1260-05P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

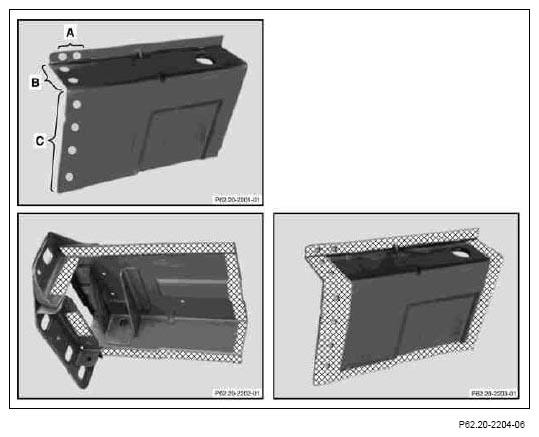

- Punch dia. 7 mm holes (areas A, B and C).
- Grind mating surfaces down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
