Install and weld in longitudinal member front section - AR62.20-P-1260-07P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
Work procedure shown on model 203.0.

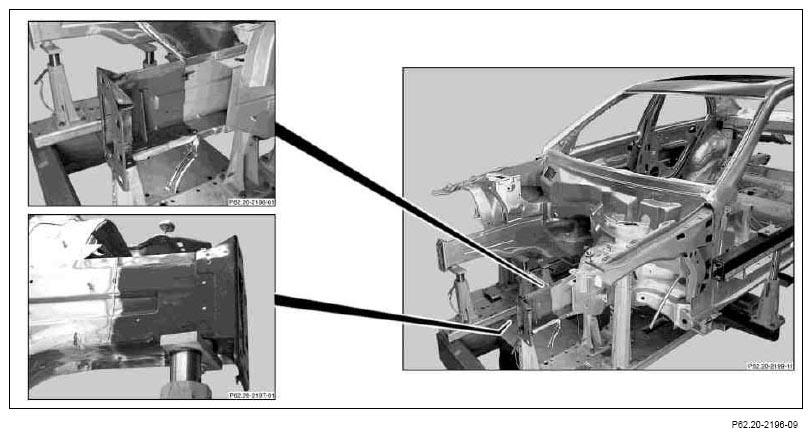

- Install longitudinal member front section, fasten to straightening tool and fasten with clamping pliers.
- Fit longitudinal member front section to vehicle
Allow new part to overlap approx. 2 cm.
- Separate longitudinal member front section and longitudinal member in overlap area with body saw
- Remove remaining pieces from longitudinal member front section and longitudinal member.

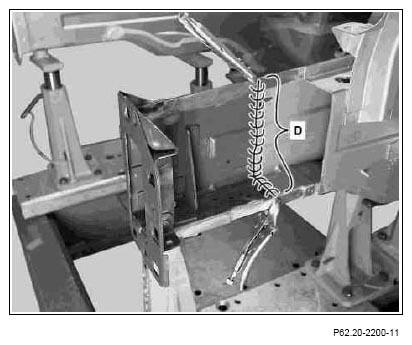

- Weld in longitudinal member front section with
(area D).
- Clean inert gas weld with wire brush.
- Grind down flat inert gas weld in area of connection surface/longitudinal member cover
- Remove shavings using wet/dry vacuum cleaner.
- Coat inert gas weld and inner adjacent surfaces with zinc dust paint.
