Retrofitting trailer coupling - AN31.10-P-8080FF

MODEL 210.206 1A up to 962230,210.210/215/216/217/225 1#,210.226/235 1A up to 962230,210.237 1#,210.261/262/263/265/270 1A up to 962230,210.272 1#,210.281/282/283 1A up to 962230

up to 06.99 with code 809, vehicles without integral turn signal indicators in the outside mirrors

Shown on detachable ball neck

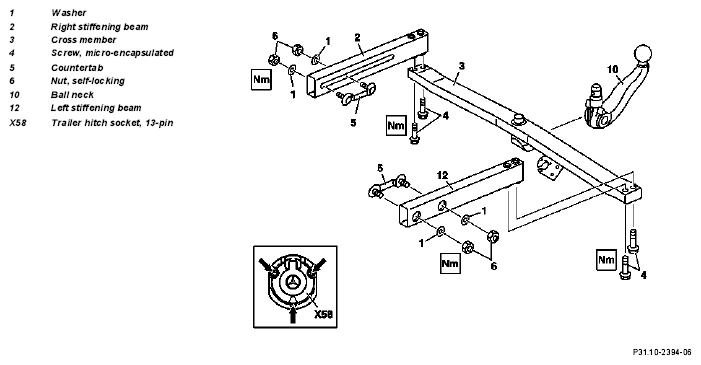

Fig 1: Retrofitting Trailer Coupling Components Shown On Detachable Ball Neck

	Remove/install
	Notes regarding installation of trailer hitch	Model 210	AH31.10-P-1000-02FF
1	Remove rear seat and rear seat backrest	Remove rear seat only.
			AR91.12-P-1700FA
2	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
3	Disconnect ground cable of battery	To protect against unintended contact, insulate the disconnected ground line.
			AR54.10-P-0003A
4	Remove rear fuse box
			AR54.15-P-1320A
5	Remove left front and left rear door sill moldings	Open the cable duct.
6	Remove trim on left B-pillar	Remove only longitudinal member paneling.
			AR68.30-P-4700F
7	Remove cover below instrument panel (left)
			AR68.10-P-1500F
8	Remove A-pillar paneling at bottom left	Open the cable duct.
9	Remove spare wheel
10	Remove side paneling in left rear
			AR68.30-P-4780B
11	Remove storage compartment paneling in trunk
12	Remove rear bumper
		up to 31.5.99.	AR88.20-P-2200EB
		as of 1.6.99	AR88.20-P-2200FB
13	Remove complete exhaust system	Only remove the rear muffler as from the threaded connection
		ENGINE 112.921 in MODELS 210.263/281, ENGINE 112.941 in MODELS 210.265/282, Engine 113.940 in model 210.270.	AR49.10-P-7000A
		Engine 111.942 in model 210.235, Engine 111.947 in model 210.245, Engine 111.970 in model 210.237, Engine 605.912 in model 210.210, Engine 602.982 in model 210.217, Engine 605.962 in model 210.215, Engine 606.962 in model 210.225.	AR49.10-P-7000BA
		Engine 611.961 in model 210.206, Engine 612.961 in model 210.216, Engine 613.961 in model 210.226.	AR49.10-P-7000HB
14	Remove shroud above rear muffler
	Install
15	Retrofit detachable mechanical body components		AN31.11-P-8080-05FF
		Bolt, crossmember to vehicle	*BA31.10-P-1001-01B
		Nut to counter tab	*BA31.10-P-1002-01B
16.1	Print document "Trailer hitch, confirmation"	The "Trailer hitch, confirmation" document must be printed out and presented when handing over attachments. For do-it-yourself installers, the detailed installation instructions must be printed out and given to the customer. These must be submitted by the customer on final inspection.
		* For Germany only	OF31.10-P-1000-01H
17	Connect wiring harness		AN31.19-P-8080-03FF
18	Reassemble vehicle
19	Perform function test of light signals at the trailer hitch socket.		AN31.19-P-8100-06F
20	Enter special equipment on vehicle data card and in vehicle data card online	Code 550 trailer hitch.

Trailer coupling
