Removal, installation |
|
|
| 1 |
Open spare wheel cover and remove |
|
|
| 2 |
Remove spare wheel |
|
|
| 3 |

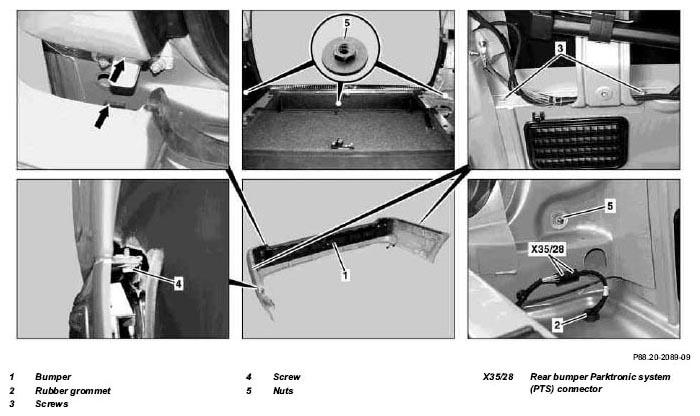

Disconnect rear bumper Parktronic system (PTS) connector (X35/28) and remove through vehicle floor with rubber grommet |
 Installation:
Ensure that rubber grommet is seated properly. |
|
| 4 |
Open right stowage compartment cover and remove |
|
|
| 5 |
Open cover below right stowage compartment |
|
|
| 6 |
Unscrew left and right screws (3) |
|
|
| 7 |
Unscrew left and right screws (4) |
|
|
| 8 |
Unscrew nuts (5) |
For this purpose remove cover from center nut |
|
| |
|
 |
*BA88.20-P-1002-01A |
| 9 |
Forcefully pull bumper (1) toward rear below left and right taillamps |
Installation:
Position bumper (1) at recess and slide toward front until it catches audibly (arrow) |
|
| 10 |
Remove bumper (1) with aid of second mechanic |
Installation:
Observe lateral guides on bumper (1) |
|
| 11.1 |
Transfer M AMG bumper |
See installation instructions for accessories ↓ |
|
| |
|
Retrofitting M AMG paneling sections |
AZ88.00-P-0001G |
| 12 |
Install in opposite order |
|
|
