Removing and installing rear bumper - AR88.20-P-2200EB

MODEL 210.2

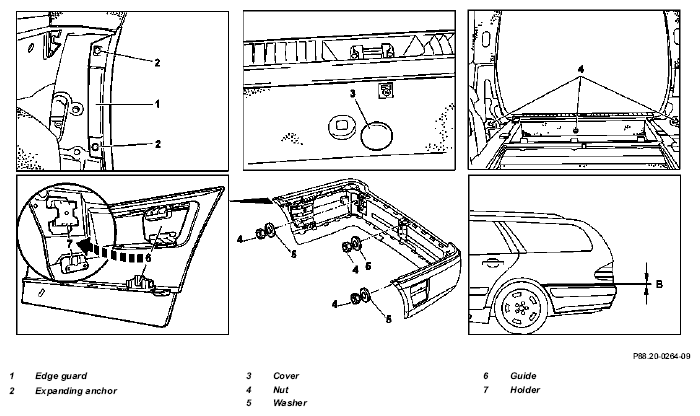

Fig 1: Identifying Rear Bumper Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove spare wheel	See Owner's Manual
2	Remove edge guard (1)	Press out expanding anchor (2)
3	Remove cover (3)
4	Unscrew nut (4) from inside, remove washer (5)	Remove middle washer with magnet	*BA88.20-P-1002-01A
5	Remove bumper toward rear with helper	Installation:  Attach guide (6) on holder (7) Installation:  Check gap dimension "B" ↓ if necessary correct bumper
6.1	Transfer M AMG bumper	See installation instructions for accessories ↓
		Retrofitting M AMG paneling sections	AZ88.00-P-0001H
7	Install in opposite order

Bumper gap dimensions

Number	Designation			Model 210
BE88.20-P-1002-01A	Dimensions	Rear bumper, gap dimension "B"	mm	6
		See figure		&.2.(AR88.20-P-2200F )

Bumper

Number	Designation		Model 210
BA88.20-P-1002-01A	Rear bumper nuts on rear center piece	Nm	20
