Removing and installing rear seat and rear backrest - AR91.12-P-1700FA

MODEL 210.2

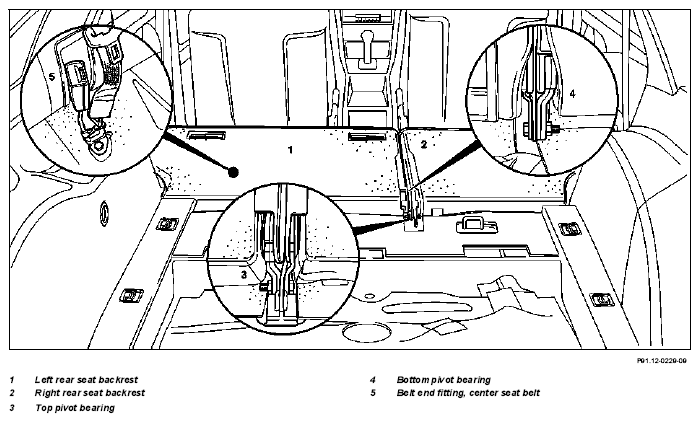

Fig 1: Identifying Rear Seat And Rear Backrest Components - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unlock rear seat and tip forward
2	Unlock rear seat and remove upward
3	Unlock rear seat backrest and tip forward
4	Remove front cover for rear floor covering		AR68.20-P-4800B
5	Unscrew bolt for top pivot bearing (3)
6	Swing rear seat backrest back
7	Unscrew seat belt end fitting for center seat belt (5)	Installation:  Ensure that seat belt end fitting is properly positioned
			*BA91.40-P-1001-01A
			Fig 2
8	Unscrew bolt for bottom pivot bearing (4)
9	Remove rear seat backrest on left (1) and right (2) upward
10	Reinstall in opposite order
11	Adjust rear seat backrest		AR91.12-P-1725A

Seat belts/emergency tensioning retractors

Number	Designation		Model 202, 208	Model 210
BA91.40-P-1001-01A	Bolt in seat belt end fitting	Nm	35	35
