Retrofitting headlamp cleaning system - AN82.15-P-0001FF
MODEL 210 as of 1.7.99
| Removal | |||
| 1 | Disconnect ground lead from battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| AR82.60-P-7502EA | |||
| 3 | Remove cover above heater or air conditioning control panel | ||
| AR68.20-P-2350F | |||
| 4 | Unclip cockpit switch group or front seat heater control module | ||
| 5 | Remove cover in left footwell | ||
| 6 | Remove front bumper | ||
| AR88.20-P-2000FA | |||
| N | Empty washing water reservoir and remove | ||
| 8 | Open fuse and relay box | ||
| 9 | Remove cover below instrument panel on left | ||
| 10 | Remove headlamp unit | ||
| AR82.10-P-4730F | |||
| Installation | |||

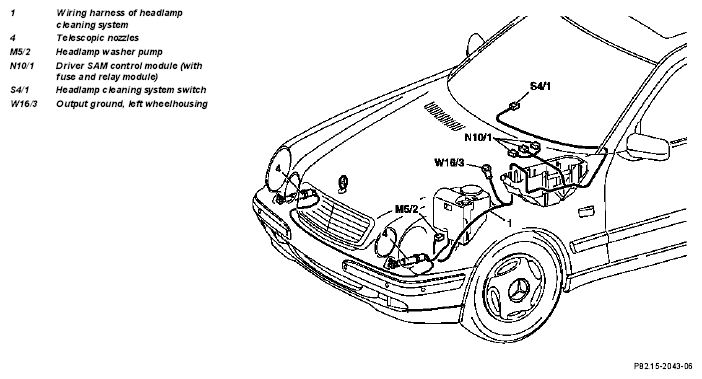

| 11 | Retrofit wiring harness of headlamp cleaning system | AN82.15-P-0001-01FF | |
| 12 | Retrofit switch | AN82.15-P-0001-02A | |
| 13 | Retrofit washing water reservoir and washing water hose | AN82.15-P-0001-03A | |
| 14 | Retrofit telescopic nozzles | AN82.15-P-0001-04FF | |
| 15 | Install in the reverse order | ||
| 16 | Carry out operational check | ||
| 17 | In the event of modification to equipment fitted, subsequently enter code or designation of relevant special equipment on vehicle data card / FDOK |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| A210 860 24 47 | Nozzle parts kit (paint new bumper in color of vehicle before installing) | 1 |
| A210 540 75 35 | Wiring harness of headlamp cleaning system (LHS) | 1 |
