Removal |
|
|
| 1 |
Open engine hood |
|
|
| 2 |
Open flap in engine compartment paneling at bottom |
|
|
| 3 |

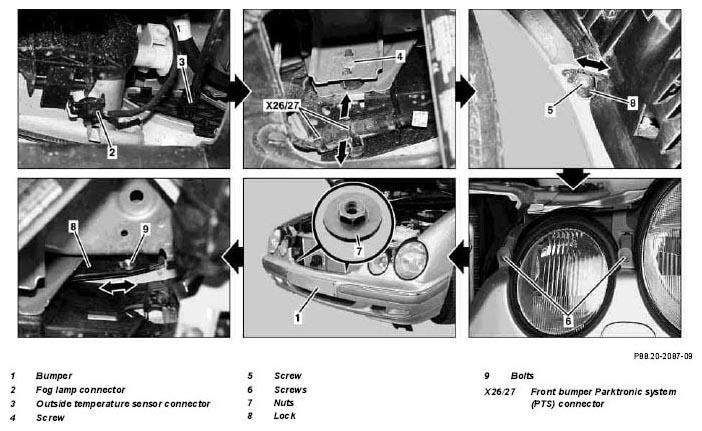

Disconnect fog lamp (2) connector |
|
|
| 4 |
Disconnect outside temperature sensor (3) connector |
|
|
| 5 |
Disconnect front bumper Parktronic system (PTS) connector (X26/27) |
For this purpose carefully lift lugs (arrows) and simultaneously disconnect connector |
|
| 6 |
Unscrew left and right screws (4) |
|
|
| 7 |
Unscrew left and right screws (5) |
|
|
| 8 |
Unscrew left and right screws (6) |
|
|
| 9 |
Unscrew nuts (7) |
|
|
| 10 |
Slide lock (8) toward front on both sides (arrow) |
|
|
| 11 |
Remove bumper (1) with aid of second mechanic |
For this purpose pull bumper downward to side until bolt (9) releases bumper |
|
 |
Installation |
|
|
|
Ensure that the lock (8) on the bumper (1) is pushed forward on both sides |
|
|
| 12.1 |
Transfer M AMG bumper |
See installation instructions for accessories ↓ |
|
| |
|
Retrofitting M AMG paneling sections |
AZ88.00-P-0001G |
| 13 |
Position bumper (1) in relation to body with aid of second mechanic and insert bolt (9) into side of bumper |
|
|
| 14 |
Push bumper (1) upwards in area of fender and pull back lock (8) |
Ensure that the bolt (9) reaches correctly into the lock |
|
| 15 |
Position screws (4) and (5) |
|
|
| 16 |
Position screws (6) |
|
|
| 17 |
Start nuts (7) on stud |
|
|
| 18 |

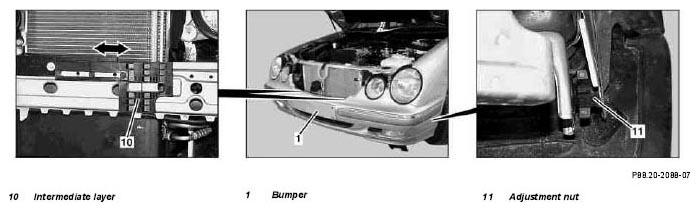

Slide intermediate layer (10) toward outside to stop |
This closes the gap between the bumper (1) and the cross member. Reposition intermediate layer (10) with slight force to keep the bumper (1) from being pressed forward |
|
| 19 |
Align bumper to correct height and tighten nuts (7) |
 |
*BA88.20-P-1001-01A |
| 20 |
Tighten screws (6) |
|
|
| 21 |
Turn adjustment nut (11) on left and right until the bumper (1) is flush with the fender at the side |
|
|
| 22 |
Tighten left and right screws (5) |
|
|
| 23 |
Tighten left and right screws (4) |
|
|
| 24 |
Connect front bumper Parktronic system (PTS) connector (X26/27) |
|
|
| 25 |
Connect outdoor temperature sensor (3) connector |
|
|
| 26 |
Connect fog lamp connector (2) |
|
|
| 27 |
Close flap in engine compartment paneling at bottom |
|
|
