Retrofitting headlamp cleaning system telescopic nozzles - AN82.15-P-0001-04FF

Model 210 as of 1.7.99

1. Install holder (11) for telescopic nozzle at headlamp with screws (12).
2. Push telescopic nozzle (4) from the front into the retaining clips (arrows).

   The washing water hose is not fitted onto the telescopic nozzle until after installing the headlamp.

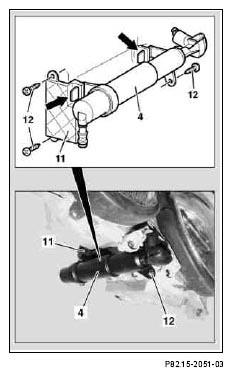

   Fig 1: Identifying Headlamp Cleaning System Telescopic Nozzles

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Attach telescopic nozzle (4) to headlamp with screw (12).
   Fig 2: Identifying Telescopic Nozzle

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
