Lethal injuries
are possible if vehicle slips off of lifting platform |
Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
| 1 |
Place vehicle on lifting platform |
|
 |
|
AR00.60-P-1000GH |
2
|
Remove attachment part from outside of tailgate |
As of VIN A289565, X754620 |
AR88.30-P-0300GH |
3
|
Remove mount for attachment part from outside of tailgate |
As of VIN A289565, X754620 |
AR88.30-P-0400GH |
| 4 |
Remove rear bumper |
|
|
|
Up to VIN A289564, X754619 |
AR88.20-P-2200GH |
|
As of VIN A289565, X754620 |
AR88.20-P-2200GK |
| 5 |
Remove mount for rear bumper |
As of VIN A289565, X754620 |
|
| 6 |
Remove left rear vent flap (27) |
Danger of breaking retaining lugs.
Loosen side vent flap (arrows).
 |
Figure |
| 7 |
Disconnect connector for trailer hitch |
Only on vehicles with trailer hitch (code 550) Connector is fastened to vehicle wiring harness (28) with adhesive tape. |
|
| 8 |
Remove rubber grommet (23) |
|
|
| 9 |
Remove emergency wheel |
See Owner's Manual |
|
| 10 |
Remove emergency wheel carrier |
Pull out locking spring on left side of emergency wheel carrier, push entire emergency wheel carrier to the left and detach on right from bearing bush. |
|
| 11 |
Remove lock of emergency wheel carrier (26) at frame cross member |
|
|
12
|
Remove detachable parts of trailer hitch |
Only on vehicles with trailer hitch (code 550) |
AR31.10-P-8000-01GH |
| |
Convert |
|
|
| 13 |
Subsequent conditioning of bumpers |
Up to VIN A289564, X754619 |
AZ88.30-P-0001-01C |
|
As of VIN A289565, X754620 |
AZ88.30-P-0001-01D |
 |
Install |
|
|
| 14 |

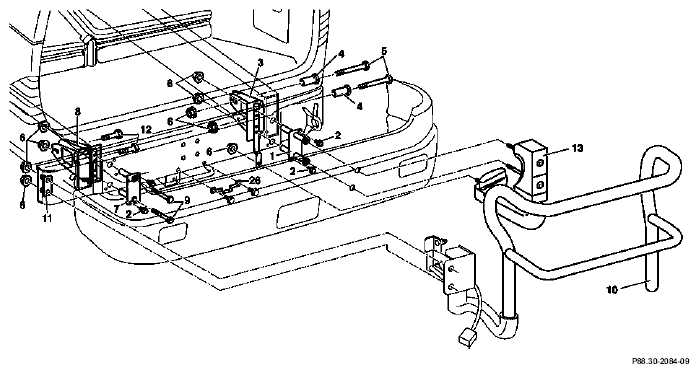

Insert mount on right (1) into frame cross member and attach with screws (2) |
Insert lug into hole at frame cross member. |
|
| 15 |
Attach reinforcement on right (3) and spacer tubes (4) to longitudinal frame member and attach hand-tight with screws (5) and nuts (6) |
 |
*BA88.30-P-1009-01A |
| 16 |
Insert intermediate piece on left (7) into frame cross member and attach with screws (2) |
Insert lug into hole at frame cross member. |
|
| 17 |
Fit reinforcement on left (8) onto longitudinal frame member and attach hand-tight with screws (9) and nuts (6) |
|
*BA88.30-P-1008-01A |
| 18 |
Insert auxiliary cable harness of spare wheel carrier (24) into rubber grommet (23) |
On vehicles with trailer hitch (code 550):
Cut open free opening of rubber grommet, widen opening and lead through auxiliary cable harness (24).
On vehicles without trailer hitch:
Cut open short cable duct of rubber grommet, widen opening and lead through auxiliary wiring harness (24). |
|
| 19 |
Insert wiring harness through hole and install rubber grommet (23) |
|
|
| 20 |
Connect connector (25) to retrofitted wiring harness (28) of vehicle |
|
|
| 21 |
Insert connector for trailer hitch |
Only on vehicles with trailer hitch (code 550) |
|
| 22 |
Install right rear vent flap (27) |
Danger of breaking retaining lugs. |
|
| 23 |
Install mount for rear bumper |
As of VIN A289565, X754620 |
|
| 24 |
Install rear bumper |
|
|
|
Up to VIN A289564, X754619 |
AR88.20-P-2200GH |
|
As of VIN A289565, X754620 |
AR88.20-P-2200GK |
| 25 |

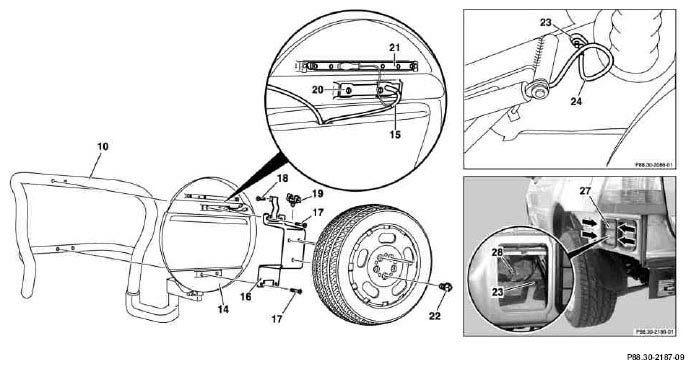

Fit on spare wheel carrier (10), insert plate (11) through frame cross member and attach with nuts (6) |
|
*BA88.30-P-1006-01A |
| 26 |
Insert screws (12) into bracket and screw on hand-tight |
|
*BA88.30-P-1009-01A |
| 27 |
Tighten right mount (13) with nuts (6) |
|
*BA88.30-P-1007-01A |
| 28 |
Position cover for spare wheel (14) and insert wiring harness (15) through opening |
|
|
| 29 |
Fit on mounting bracket (16) and tighten with screws (17) and (18) |
|
*BA88.30-P-1010-01A |
| 30 |
Attach wiring harness (15) with clip (19) to mounting bracket (16) and insert into license plate lamp (20) and auxiliary stop lamp (21) |
|
|
| 31 |
Fit spare wheel onto mounting bracket (16) and screw tight with screws (22) |
|
*BA40.10-P-1001-01A |
| 32 |
Close spare wheel carrier (10) and align |
|
|
| 33 |
Tighten all nuts and screws |
|
|
| 34 |
Plug together auxiliary wiring harness (24) and wiring harness at hinge of bracket |
|
|
| 35 |
Match up number plate to cover for spare wheel (14) and screw tight |
|
|
| 36 |
Install mount for attachment part to outside of tailgate |
As of VIN A289565, X754620. Use mount with recess for spare wheel. |
|
|
AR88.30-P-0400GH |
| 37 |
Install attachment part at outside of tailgate |
As of VIN A289565, X754620. Use attachment part with recess for spare wheel. |
|
|
AR88.30-P-0300GH |
| 38 |
Check function of spare wheel carrier and of lamps |
Lock must engage without any further pressure. The spare wheel should not make contact with the attachment part at the outside of the tailgate. |
|
39
 |
Check setting of headlamps and set, if necessary |
|
AP82.10-P-8260GH |
