Remove/install rear bumper - AR88.20-P-2200GK

MODEL 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 #A as of 289565, 163.128/157/175

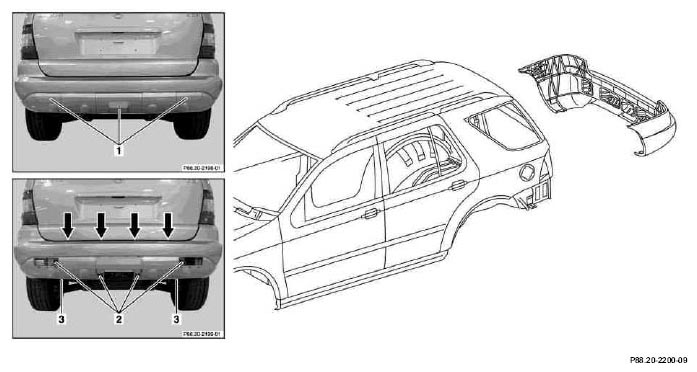

Fig 1: Identifying Rear Bumper & Fasteners

G04609099

	Remove/Install
1.1	Disconnect antenna connector of E-call emergency call system	Only with emergency call system E-Call, code 349. The connector is located behind side flap on right C-pillar paneling at vehicle jacking point.
2	Remove panelings (1)	Do not damage paint. Do not break off clips. Installation wedge	Figure
3	Remove screws (2)		*BA88.20-P-1008-01B
4.1	Remove nut for dirt trap retaining strap from vehicle underbody	Only if present	*BA88.30-P-1004-01A
5	Pull bumper toward rear and remove	Do not damage paint/wiring harness. Pull directly over clips (arrows) and detach from bracket Installation: Align bumper at tailgate and at taillamps
6.1	Remove rubber seal for E-call emergency call system antenna from body at right	Only with emergency call system E-Call, code 349.
7.1	Detach connector from Parktronic system	Only with Parktronic system (PTS), code 220a. Remove left rubber seal from body.
8	Install in the reverse order

TORQUE SPECIFICATION

Bumper

Number	Designation		Model 163
BA88.20-P-1008-01B	Screw for rear bumper on mount	Nm	8

TORQUE SPECIFICATION

Detachable body components, underride guard

Number	Designation		Model 163 as of 1.9.01
BA88.30-P-1004-01A	Nut for retaining strap on mud guard on vehicle underbody	Nm	6

Fig 2: Identifying Long Wedge (115 589 03 59 00)

G04609100
